Getrag 265/5 speedometer drive for BMW 5 Series E28 M535i (1987)

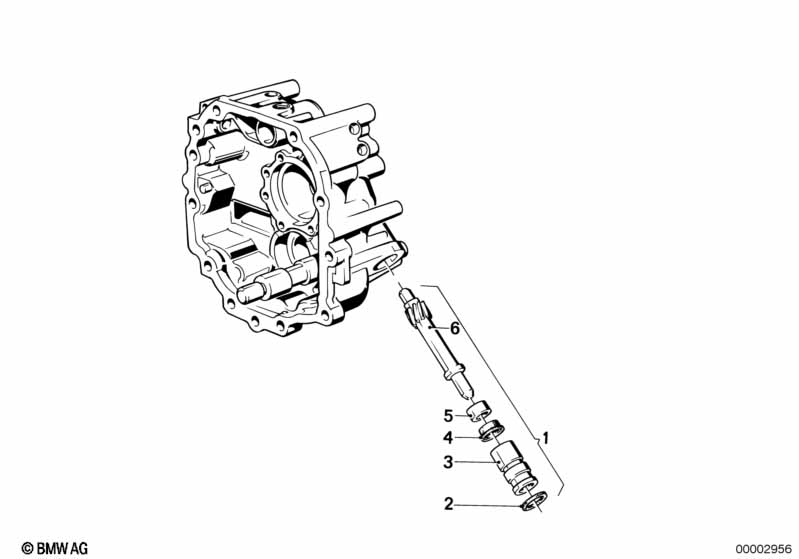

This Getrag 265/5 speedometer drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Taxi package |
S581A=Yes |
||||||||
| 01 | Speedometer drive | 1 | 23211207772 | $149.91 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 19,5X3 | 1 | 11431740045 | $1.81 | Shop at ECS Tuning | ||||
| 03 | Adaptor | 1 | 23211202751 | $88.92 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 8X14X6 | 1 | 23121490192 | $14.05 | Shop at ECS Tuning | ||||
| 05 | Bush | 1 | 23121630176 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 06 | Speedometer drive | 1 | 23221200416 | $105.44 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Getrag 265/5 speedometer drive?
- This technical diagram illustrates the Getrag 265/5 speedometer drive within the Manual Transmission group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Speedometer drive (Part #23211207772).
- Which models use the hardware listed in this Getrag 265/5 speedometer drive?
- The hardware and components featured in the Getrag 265/5 speedometer drive are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Speedometer drive (23211207772) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 265/5 speedometer drive assembly?
- Each item in the Getrag 265/5 speedometer drive corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Speedometer drive by locating its position on the schematic, which then links to the official BMW part number 23211207772 for the Manual Transmission section.
