Getrag 265/5 housing+attaching parts for BMW 7 Series E23 735i (1982)

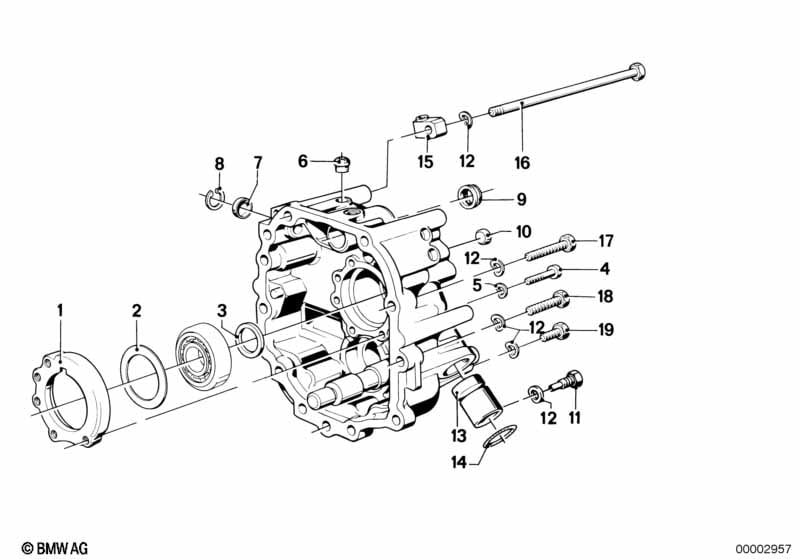

This Getrag 265/5 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | backup ring | 1 | 23111205524 | $63.89 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 30X42X0,3 | X | 23121630161 | $2.21 | Shop at ECS Tuning | ||||
| 03 | Support | 30X42X2,5 | 1 | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Oval-head screw with anti-rotation lock | M6X35-8.8-ZNS3 | 5 | 07129904259 | $2.51 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 5 | 04/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 06 | Ventilation valve | 1 | 23111224051 | $10.14 | Shop at ECS Tuning | |||||
| 07 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 08 | Lock Ring | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 09 | Shaft seal | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 10 | Cover lid | D=15MM | 3 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 12 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Locking sleeve f speedometer drive | 25MM | 1 | 23211207043 | $15.08 | ENDED | Shop at ECS Tuning | |||
| 14 | O-ring | 19,5X3 | 1 | 11431740045 | $1.81 | Shop at ECS Tuning | ||||
| 15 | Supporting bracket | 2 | 25111202842 | $20.64 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M14X75 | 1 | 07119912870 | $5.38 | ENDED | Shop at ECS Tuning | |||
| 18 | Hex bolt | M8X45-8.8-ZNS3 | 7 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
