Getrag 265/5 gear wheel set,sing part for BMW 7 Series E23 728 (1978)

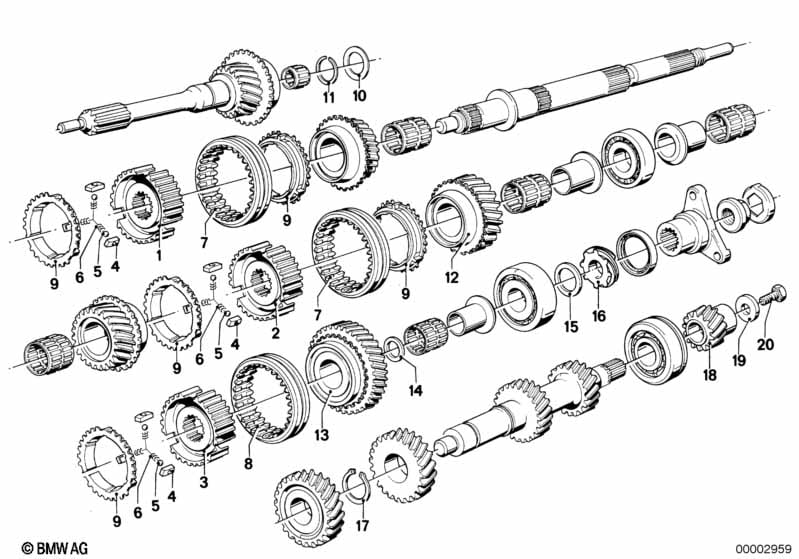

This Getrag 265/5 gear wheel set,sing part technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO 4TH AND 5TH GEAR | ||||||||||
| 01 | Guide sleeve assembly | 1 | 23231205226 | $430.32 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO 2ND AND 3RD GEAR | ||||||||||
| 02 | Guide sleeve 2nd and 3rd gear | 1 | 23231205229 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO 1ST AND REVERSE GEAR | ||||||||||
| 03 | Guide sleeve 1st and reverse gear | 1 | 09/1980 | 23231205231 | ENDED | Shop at ECS Tuning | ||||
| 04 | Insert | 3 | 23231202736 | $6.05 | ENDED | Shop at ECS Tuning | ||||
| 05 | Ball | 6,5MM III | 3 | 07119986272 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 06 | Compression spring | 3 | 23231205228 | $1.07 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO 2ND AND 3RD GEAR | ||||||||||
| 07 | Guide sleeve 2nd and 3rd gear | 1 | 23231205229 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO 4TH AND 5TH GEAR | ||||||||||
| 07 | Guide sleeve assembly | 1 | 23231205226 | $430.32 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO 1ST AND REVERSE GEAR | ||||||||||
| 08 | Guide sleeve 1st and reverse gear | 1 | 09/1980 | 23231205231 | ENDED | Shop at ECS Tuning | ||||
| 09 | Synchronizer ring | 5 | 23231202739 | $86.78 | Shop at ECS Tuning | |||||
| 10 | Support | 28X37X4,0 | X | 23221202740 | $7.53 | Shop at ECS Tuning | ||||
| 10 | Support | 28X37X3,9 | X | 23221202741 | $8.77 | Shop at ECS Tuning | ||||
| 10 | Support | 28X37X3,8 | X | 23221202742 | $6.25 | Shop at ECS Tuning | ||||
| 10 | Support | 28X37X3,7 | X | 23221203690 | $6.25 | ENDED | Shop at ECS Tuning | |||
| 11 | Snap ring | 1 | 23221630172 | $5.75 | Shop at ECS Tuning | |||||
| 12 | Shift gear for 1st. gear | Z=36 | 1 | 23211205221 | $437.47 | ENDED | Shop at ECS Tuning | |||
| 13 | Reverse shift gear | Z=41 | 1 | 09/1980 | 23211205223 | ENDED | Shop at ECS Tuning | |||
| 13 | Reverse shift gear with synchroniz.ring | 1 | 09/1980 | 23221228570 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Guide sleeve 1st and reverse gear | 1 | 09/1980 | 23231224749 | $284.58 | ENDED | Shop at ECS Tuning | |||
| 14 | Shim | 1 | 23231205235 | $8.93 | ENDED | Shop at ECS Tuning | ||||
| 15 | Support | 30X42X2,5 | 1 | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 16 | Speedometer drive | 1 | 23221490119 | $135.09 | Shop at ECS Tuning | |||||
| 17 | Lock Ring | 42X1,75 | 1 | 07119934230 | ENDED | Shop at ECS Tuning | ||||
| 18 | Gear wheel | Z=16 | 1 | 23211205206 | $224.32 | ENDED | Shop at ECS Tuning | |||
| 19 | Washer | 1 | 23221201489 | ENDED | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M10X30-10.9ZNS3 | 1 | 07119902912 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
