Getrag 265/5 inner gear shifting parts for BMW 5 Series E12 528 (1976)

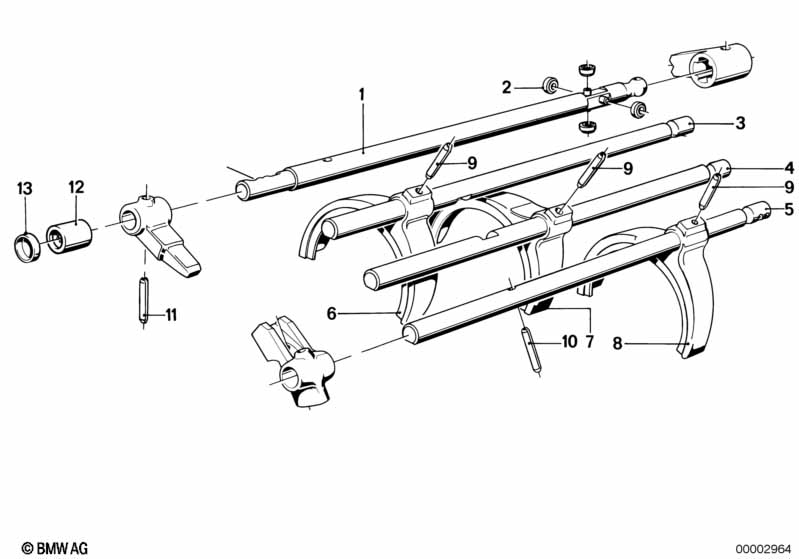

This Getrag 265/5 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector shaft | 1 | 23311205249 | $272.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | Roll pin | 4 | 23317539086 | $10.41 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shifting rod 4th and 5th gear | 1 | 23311205247 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shifting rod 2nd and 3rd gear | 1 | 23311205246 | $145.08 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shifting rod 1st and reverse gear | 1 | 23311205245 | $123.88 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO 4TH AND 5TH GEAR | ||||||||||
| 06 | Shifting fork | 1 | 23311202674 | $79.48 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO 1ST AND REVERSE GEAR | ||||||||||
| 07 | Shifting fork | 1 | 23311202672 | $91.89 | ENDED | Shop at ECS Tuning | ||||
| 08 | Shifting fork 1st and 2nd gear | 1 | 23311208522 | $106.86 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spiral tension pin | 6X24 | 3 | 23221203745 | $0.52 | Shop at ECS Tuning | ||||
| 10 | Roll pin | 6X32 | 1 | 07119941272 | ENDED | Shop at ECS Tuning | ||||
| 11 | Roll pin | 6X28 | 1 | 07119941270 | $0.95 | ENDED | Shop at ECS Tuning | |||
| 12 | Bearing ball cage | 21X15X22 | 1 | 23111206948 | Shop at ECS Tuning | |||||
| 12 | Bearing ball cage | 21X15X22 | 1 | 23111228404 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cover lid | D=14MM | 2 | 07119937227 | $0.59 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
