Getrag 265/5 inner gear shifting parts for BMW 5 Series E28 M535i (1987)

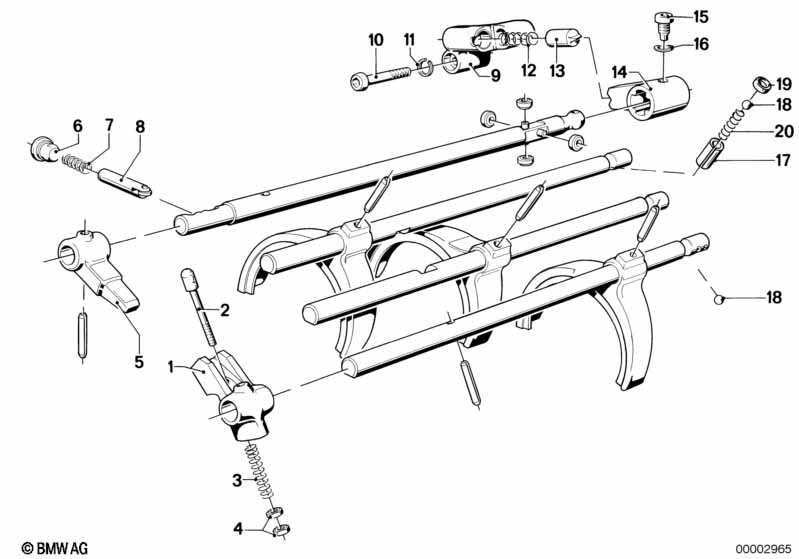

This Getrag 265/5 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Driving dog 1st and reverse gear | 1 | 23311205242 | $141.73 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pin | 1 | 23311205243 | ENDED | Shop at ECS Tuning | |||||
| 03 | Compression spring | D=1,5MM | 1 | 23311205255 | $5.58 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Shift | 1 | 23311205251 | $164.05 | Shop at ECS Tuning | |||||
| 06 | Blind plug | 1 | 23317545771 | $6.03 | Shop at ECS Tuning | |||||
| 07 | Compression spring | D=1,4MM | 1 | 23311207396 | $4.64 | Shop at ECS Tuning | ||||
| 08 | Locking pin | 1 | 23311205113 | $25.45 | Shop at ECS Tuning | |||||
| 09 | Supporting bracket | 1 | 23311205253 | ENDED | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M8X40 | 1 | 07119919736 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fillister-head screw | M8X55 | 1 | 07119919745 | ENDED | Shop at ECS Tuning | ||||
| 11 | Spring washer | 8 | 1 | 07119933240 | ENDED | Shop at ECS Tuning | ||||
| 12 | Compression spring | D=1,5MM | 1 | 23311205255 | $5.58 | ENDED | Shop at ECS Tuning | |||
| 13 | Locking pin | 1 | 23311205256 | $20.76 | ENDED | Shop at ECS Tuning | ||||
| 14 | Selector cam | 1 | 23311205252 | ENDED | Shop at ECS Tuning | |||||
| 15 | Fillister-head screw | M8X12 | 1 | 23311224039 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 16 | Wave washer | B8 | 1 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Bush | 3 | 23311207056 | $1.11 | Shop at ECS Tuning | |||||
| 18 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 19 | Cover lid | D=12MM | 2 | 07119906393 | Shop at ECS Tuning | |||||
| 20 | Compression spring | D=1,0MM | 3 | 23311200811 | $3.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
