Getrag 265/5 inner gear shifting parts for BMW 3 Series E30 M3 (1990)

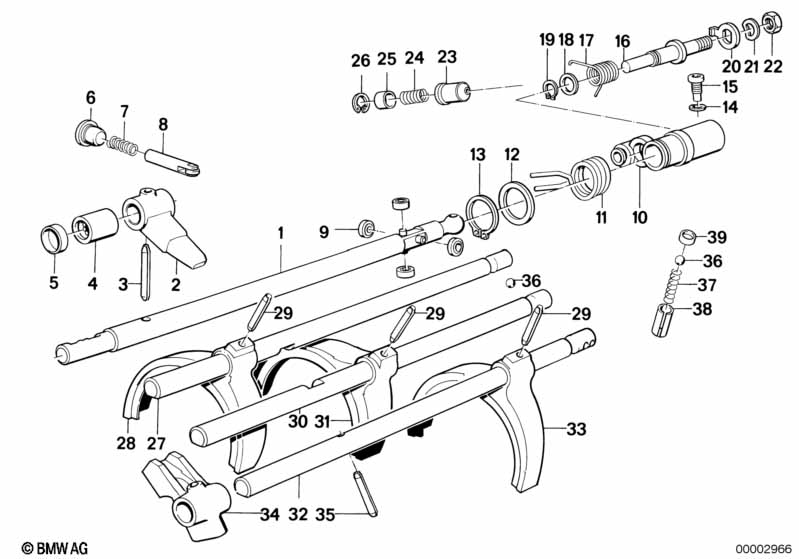

This Getrag 265/5 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector shaft | 1 | 23311205249 | $272.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shift | 1 | 23311205251 | $164.05 | Shop at ECS Tuning | |||||
| 03 | Roll pin | 6X28 | 1 | 07119941270 | $0.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Bearing ball cage | 21X15X22 | 1 | 23111206948 | Shop at ECS Tuning | |||||
| 04 | Bearing ball cage | 21X15X22 | 1 | 23111228404 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover lid | 2 | 23317637524 | Shop at ECS Tuning | ||||||
| 06 | Blind plug | 1 | 23317545771 | $6.03 | Shop at ECS Tuning | |||||
| 07 | Compression spring | D=1,4MM | 1 | 23311207396 | $4.64 | Shop at ECS Tuning | ||||
| 08 | Locking pin | 1 | 23311205113 | $25.45 | Shop at ECS Tuning | |||||
| 09 | Roll pin | 4 | 23317539086 | $10.41 | ENDED | Shop at ECS Tuning | ||||
| 10 | Selector cam | 1 | 23121224038 | ENDED | Shop at ECS Tuning | |||||
| 11 | Retainer spring | D=3,3MM | 1 | 23311209348 | $14.98 | ENDED | Shop at ECS Tuning | |||
| 12 | Shim | 32X26X1,0 | 1 | 23311202769 | $1.61 | ENDED | Shop at ECS Tuning | |||
| 13 | Lock Ring | 1 | 23311202768 | $2.30 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wave washer | B8 | 1 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Fillister-head screw | M8X12 | 1 | 23311224039 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 16 | Pin | 1 | 23311224043 | ENDED | Shop at ECS Tuning | |||||
| 17 | Retainer spring | D=2,4MM | 1 | 23311224040 | ENDED | Shop at ECS Tuning | ||||
| 18 | Shim | 12X18X1,0 | 1 | 23311224048 | ENDED | Shop at ECS Tuning | ||||
| 19 | Lock Ring | 12X1,0 | 1 | 07119934060 | $0.56 | Shop at ECS Tuning | ||||
| 20 | Support plate | 1 | 23311224042 | ENDED | Shop at ECS Tuning | |||||
| 21 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 22 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 23 | Locking pin | 1 | 23311224041 | ENDED | Shop at ECS Tuning | |||||
| 24 | Compression spring | D=1,7MM | 1 | 23311204513 | $2.51 | Shop at ECS Tuning | ||||
| 25 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 26 | Lock Ring | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 27 | Shifting rod 4th and 5th gear | 1 | 23311205247 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 28 | Shifting fork | 1 | 23311202674 | $79.48 | Shop at ECS Tuning | |||||
| 29 | Roll pin | 6X28 | 1 | 07119941381 | $1.22 | Shop at ECS Tuning | ||||
| 29 | Spiral tension pin | 6X24 | 3 | 23221203745 | $0.52 | Shop at ECS Tuning | ||||
| 30 | Shifting rod 2nd and 3rd gear | 1 | 23311205246 | $145.08 | ENDED | Shop at ECS Tuning | ||||
| 31 | Shifting fork | 1 | 23311202672 | $91.89 | ENDED | Shop at ECS Tuning | ||||
| 32 | Shifting rod 1st and reverse gear | 1 | 23311205245 | $123.88 | Shop at ECS Tuning | |||||
| 33 | Shifting fork 1st and 2nd gear | 1 | 23311208522 | $106.86 | ENDED | Shop at ECS Tuning | ||||
| 34 | Driving dog 1st and reverse gear | 1 | 23311224001 | ENDED | Shop at ECS Tuning | |||||
| 35 | Roll pin | 6X32 | 1 | 07119941272 | ENDED | Shop at ECS Tuning | ||||
| 36 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 37 | Compression spring | D=1,0MM | 3 | 23311200811 | $3.85 | Shop at ECS Tuning | ||||
| 38 | Bush | 3 | 23311207056 | $1.11 | Shop at ECS Tuning | |||||
| 39 | Cover lid | D=12MM | 2 | 07119906393 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
