Getrag 265/5 inner gear shifting parts for BMW 5 Series E28 M535i (1987)

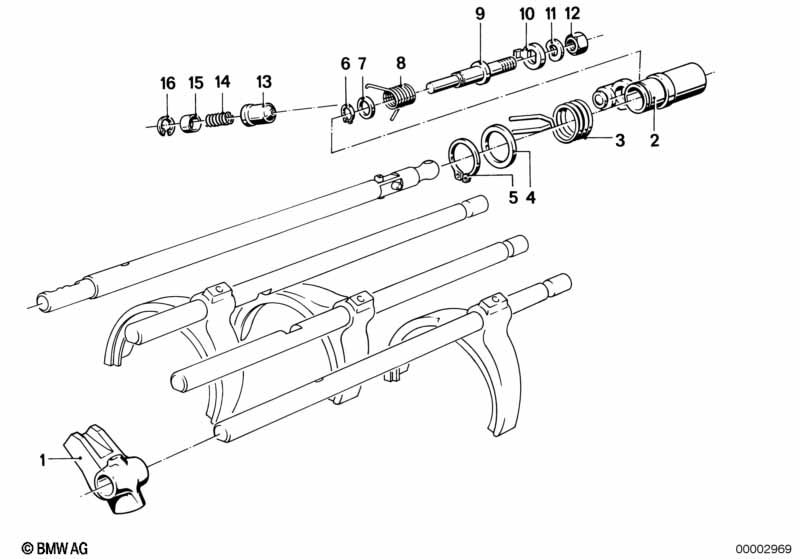

This Getrag 265/5 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO SYNCHRON.REVERSE GEAR | ||||||||||
| 01 | Driving dog 1st and reverse gear | 1 | 23311224001 | ENDED | Shop at ECS Tuning | |||||
| 02 | Selector cam | 1 | 23121224038 | ENDED | Shop at ECS Tuning | |||||
| 03 | Retainer spring | D=3,3MM | 1 | 23311209348 | $14.98 | ENDED | Shop at ECS Tuning | |||
| 04 | Shim | 32X26X1,0 | 1 | 23311202769 | $1.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Lock Ring | 1 | 23311202768 | $2.30 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lock Ring | 12X1,0 | 1 | 07119934060 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Shim | 12X18X1,0 | 1 | 23311224048 | ENDED | Shop at ECS Tuning | ||||
| 08 | Retainer spring | D=2,4MM | 1 | 23311224040 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pin | 1 | 23311224043 | ENDED | Shop at ECS Tuning | |||||
| 10 | Support plate | 1 | 23311224042 | ENDED | Shop at ECS Tuning | |||||
| 11 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 13 | Locking pin | 1 | 23311224041 | ENDED | Shop at ECS Tuning | |||||
| 14 | Compression spring | D=1,7MM | 1 | 23311204513 | $2.51 | Shop at ECS Tuning | ||||
| 15 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 16 | Lock Ring | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
