Getrag 265/6 housing+attaching parts for BMW 7 Series E23 735i (1982)

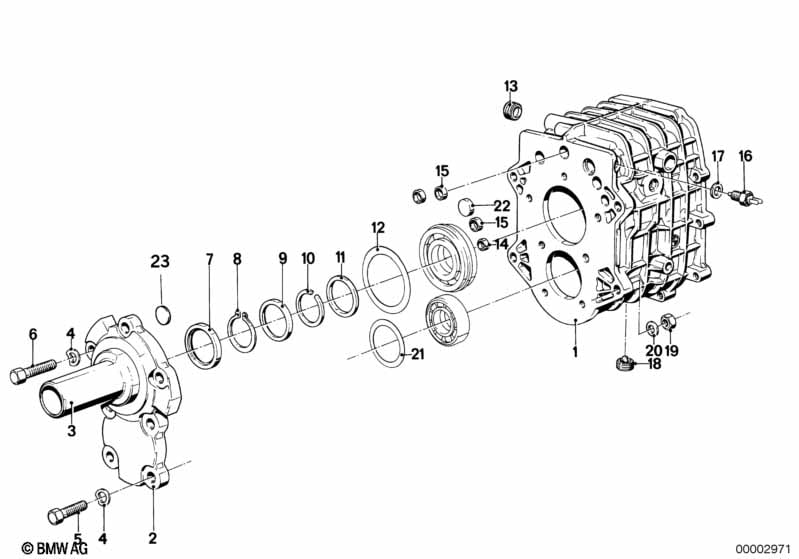

This Getrag 265/6 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 23111208327 | $474.30 | ENDED | Shop at ECS Tuning | ||||
| 02 | Housing cover | 1 | 23111209487 | $233.58 | Shop at ECS Tuning | |||||
| 03 | Guide bush | 1 | 23111228175 | $104.24 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X22-8.8-ZNS3 | 4 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X30 | 3 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Shaft seal | 35X52X7 | 1 | 23121209311 | Shop at ECS Tuning | |||||
| 08 | Lock Ring | 35X1,5 | 1 | 07119934215 | Shop at ECS Tuning | |||||
| 09 | Ring | 1 | 23121209316 | $7.93 | ENDED | Shop at ECS Tuning | ||||
| 10 | Snap ring | 35X2,00 | X | 23211209359 | $2.58 | Shop at ECS Tuning | ||||
| 10 | Snap ring | 35X2,10 | X | 23211209360 | $2.58 | Shop at ECS Tuning | ||||
| 10 | Snap ring | 35X2,20 | X | 23211209361 | $2.58 | Shop at ECS Tuning | ||||
| 10 | Snap ring | 35X2,30 | X | 23211209362 | $2.17 | Shop at ECS Tuning | ||||
| 11 | Support | 35,1X48X3 | X | 23231209325 | $8.32 | Shop at ECS Tuning | ||||
| 12 | Shim | 78X63X0,3 | X | 23121209312 | $1.82 | Shop at ECS Tuning | ||||
| 12 | Shim | 78X63X0,4 | X | 23121209313 | $1.53 | ENDED | Shop at ECS Tuning | |||
| 12 | Shim | 78X63X0,5 | X | 23121209314 | $9.34 | Shop at ECS Tuning | ||||
| 13 | Screw plug | M24X1,5 | 1 | 27111226798 | $5.61 | Shop at ECS Tuning | ||||
| 14 | Cover lid | D=15MM | 1 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 15 | Cover lid | D=17MM | 2 | 07119937248 | $0.44 | Shop at ECS Tuning | ||||
| 16 | Backup light switch | M12X1,5 | 1 | 23141354071 | $16.78 | Shop at ECS Tuning | ||||
| 17 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Screw plug | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
| 19 | Hex nut | M12 | 4 | 07119922139 | $2.09 | ENDED | Shop at ECS Tuning | |||
| 20 | Washer | A13/HV-ZNS | 4 | 04/1986 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 20 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Shim | 50X62X0,3 | X | 23121200409 | $1.82 | Shop at ECS Tuning | ||||
| 22 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 23 | Washer | B1 | 1 | 23111209369 | $0.72 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
