Getrag 265/6 cover+attach.parts for BMW 7 Series E23 733i (1984)

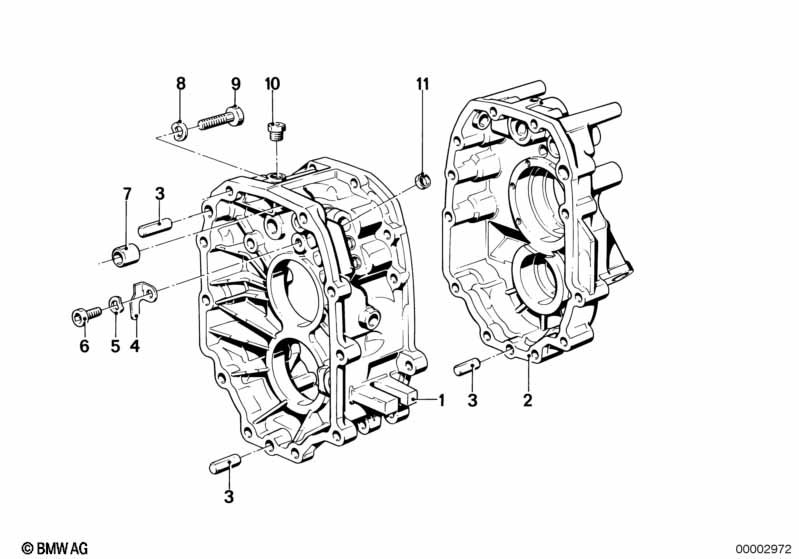

This Getrag 265/6 cover+attach.parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intermediate housing | 1 | 23111209320 | $619.38 | ENDED | Shop at ECS Tuning | ||||
| 02 | Transmission cover | 1 | 23111209321 | ENDED | Shop at ECS Tuning | |||||
| 03 | Dowel pin | 10X32 | 4 | 07119942304 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Oil guide | 1 | 23121208478 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 1 | 04/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 05 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister-head screw | M6X12 | 1 | 07119920069 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Bushing | 1 | 23117510946 | $11.25 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M8X35 | X | 07119919985 | $1.15 | ENDED | Shop at ECS Tuning | |||
| 10 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 11 | Cover lid | D=12MM | 4 | 07119906393 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
