Getrag 265/6 gearset parts for BMW 5 Series E28 535i (1987)

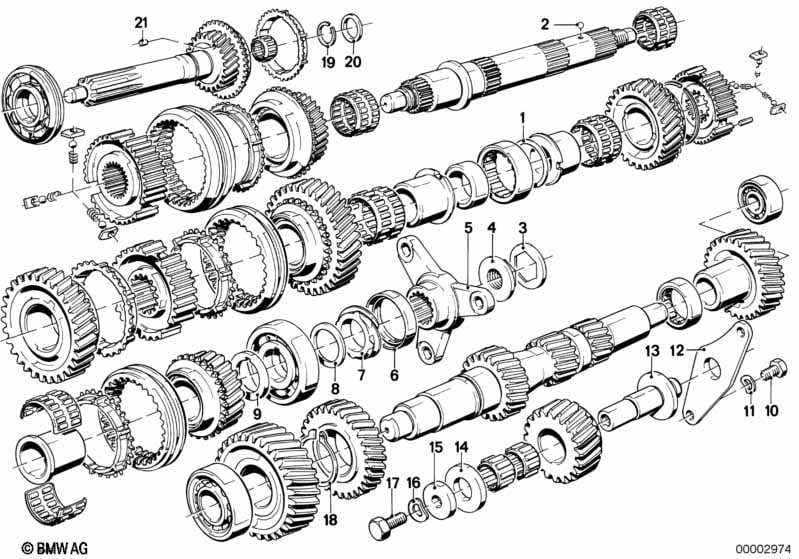

This Getrag 265/6 gearset parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shim | 35X45X0,2 | X | 23211205238 | $1.20 | ENDED | Shop at ECS Tuning | |||
| 02 | Ball | 4MM III | 1 | 07119986240 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 04 | Collar nut | M20X1,5 | 1 | 23217572241 | $10.36 | Shop at ECS Tuning | ||||
| 05 | Output flange | 1 | 23211224279 | $150.23 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 40X55X8 | 1 | 23121205342 | Shop at ECS Tuning | |||||
| 07 | Speedometer drive | 1 | 23221490119 | $135.09 | Shop at ECS Tuning | |||||
| 08 | Support | 30X42X2,5 | 1 | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 09 | Stop disk | 1 | 23211209337 | $17.64 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X25 | 2 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Support plate | 1 | 23121209319 | $11.07 | ENDED | Shop at ECS Tuning | ||||
| 14 | Stop disk | 1 | 23211209358 | $8.93 | ENDED | Shop at ECS Tuning | ||||
| 15 | Washer | 1 | 23211209357 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 16 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M10X20-10.9-MK | 1 | 07119904152 | $1.16 | Shop at ECS Tuning | ||||
| 18 | Lock Ring | 42X1,75 | 1 | 07119934230 | ENDED | Shop at ECS Tuning | ||||
| 19 | Snap ring | 1 | 23221630172 | $5.75 | Shop at ECS Tuning | |||||
| 20 | Support | 28X37X4,0 | X | 23221202740 | $7.53 | Shop at ECS Tuning | ||||
| 20 | Support | 28X37X3,9 | X | 23221202741 | $8.77 | Shop at ECS Tuning | ||||
| 20 | Support | 28X37X3,8 | X | 23221202742 | $6.25 | Shop at ECS Tuning | ||||
| 20 | Support | 28X37X3,7 | X | 23221203690 | $6.25 | ENDED | Shop at ECS Tuning | |||
| 21 | Dowel pin | 1 | 23121209324 | $1.33 | ENDED | Shop at ECS Tuning |
