Getrag 260/5/50 gear wheel set,sing part for BMW 5 Series E34 524td (1991)

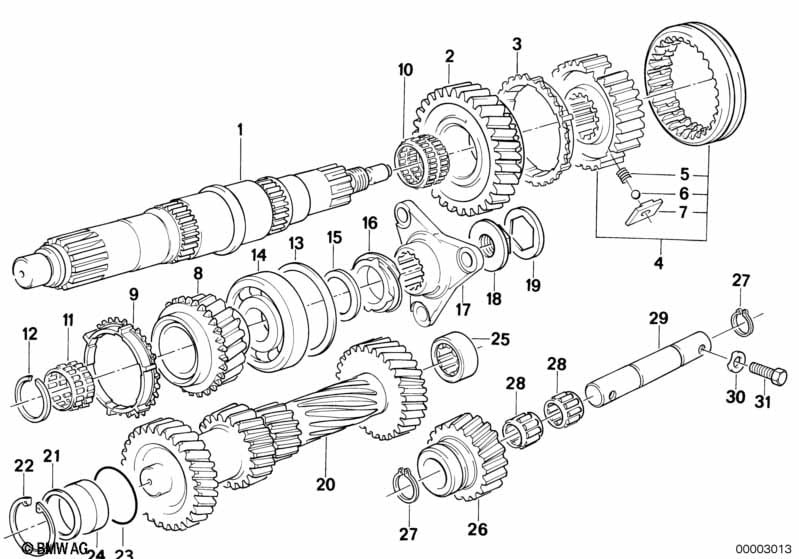

This Getrag 260/5/50 gear wheel set,sing part technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft | 1 | 23211228297 | $515.59 | Shop at ECS Tuning | |||||
| 02 | Reverse shift gear | 1 | 23221228160 | ENDED | Shop at ECS Tuning | |||||
| 03 | Synchronizer ring | 1 | 23231228096 | $121.90 | Shop at ECS Tuning | |||||
| 04 | Guide bushing 5.and reverse gear | 1 | 23231228224 | $294.45 | Shop at ECS Tuning | |||||
| 05 | Compression spring | 3 | 23231224368 | $6.45 | Shop at ECS Tuning | |||||
| 06 | Ball | 3 | 23231224365 | $1.02 | Shop at ECS Tuning | |||||
| 07 | Insert | 3 | 23231224364 | $2.82 | Shop at ECS Tuning | |||||
| 08 | Shift gear for 5th. gear | 1 | 23211224258 | $299.09 | ENDED | Shop at ECS Tuning | ||||
| 09 | Synchronizer ring | 1 | 23231228097 | $121.90 | Shop at ECS Tuning | |||||
| 10 | Needle cage | 50X55X30 | 1 | 23221224287 | $53.80 | Shop at ECS Tuning | ||||
| 11 | Needle cage | 40X35X28,5 | 1 | 23221224177 | $16.50 | Shop at ECS Tuning | ||||
| 12 | Lock Ring | 52X44X2,00 | 1 | 23221224190 | $3.18 | Shop at ECS Tuning | ||||
| 12 | Lock Ring | 52X44X1,95 | 1 | 23221224191 | $5.25 | Shop at ECS Tuning | ||||
| 12 | Lock Ring | 52X44X1,90 | 1 | 23221224192 | $3.42 | Shop at ECS Tuning | ||||
| 12 | Lock Ring | 52X44X1,85 | 1 | 23221224193 | $3.40 | Shop at ECS Tuning | ||||
| 12 | Lock Ring | 52X44X1,80 | 1 | 23221224194 | $3.40 | Shop at ECS Tuning | ||||
| 13 | Shim | 80X66X0,3 | 1 | 23221224376 | $9.81 | Shop at ECS Tuning | ||||
| 13 | Shim | 80X66X0,4 | 1 | 23221224377 | $4.08 | ENDED | Shop at ECS Tuning | |||
| 13 | Shim | 80X66X0,5 | 1 | 23221224378 | $7.02 | Shop at ECS Tuning | ||||
| 14 | Ball bearing | 80X30X20 | 1 | 23121224166 | $74.42 | Shop at ECS Tuning | ||||
| 15 | Stop disk | 1 | 23221224181 | $7.38 | Shop at ECS Tuning | |||||
| 17 | Output flange | D=12MM | 1 | 23211203061 | $116.85 | Shop at ECS Tuning | ||||
| 18 | Collar nut | M20X1,5 | 1 | 23217572241 | $10.36 | Shop at ECS Tuning | ||||
| 19 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 20 | Countershaft | 1 | 23211224257 | ENDED | Shop at ECS Tuning | |||||
| 21 | Shim | 44X36,5X1,7 | 1 | 23221224092 | $1.58 | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X1,8 | 1 | 23221224093 | $2.43 | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X2,0 | 1 | 23221224094 | $1.22 | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X2,1 | 1 | 23221224095 | $1.22 | Shop at ECS Tuning | ||||
| 21 | Shim | 1 | 23221224096 | $1.22 | ENDED | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X1,0 | 1 | 23221224223 | $2.41 | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X2,3 | 1 | 23221224224 | $1.51 | ENDED | Shop at ECS Tuning | |||
| 22 | Lock Ring | 44X1,75 | 1 | 23221224078 | $2.13 | Shop at ECS Tuning | ||||
| 23 | O-ring | 44X1,5 | 1 | 23211228152 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 24 | Roller bearing | 44X25X19,65 | 1 | 23121224076 | $38.75 | Shop at ECS Tuning | ||||
| 25 | Roller bushing | 44X25X19,65 | 1 | 23121224077 | Shop at ECS Tuning | |||||
| 26 | Reverse gear | 1 | 23221228519 | ENDED | Shop at ECS Tuning | |||||
| 27 | Snap ring | 22X3X2,5 | 2 | 23221224184 | $3.30 | Shop at ECS Tuning | ||||
| 28 | Needle cage | 30X22X15 | 2 | 23211206957 | $10.52 | Shop at ECS Tuning | ||||
| 29 | Shaft for double wheel | 1 | 23221224180 | $46.04 | ENDED | Shop at ECS Tuning | ||||
| 30 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 31 | Hex bolt | M8X25 | 2 | 34331152651 | $12.34 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 524td Getrag 260/5/50 gear wheel set,sing part?
- This technical diagram illustrates the Getrag 260/5/50 gear wheel set,sing part within the Manual Transmission group for the 5 Series E34 524td produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Output shaft (Part #23211228297).
- Which models use the hardware listed in this Getrag 260/5/50 gear wheel set,sing part?
- The hardware and components featured in the Getrag 260/5/50 gear wheel set,sing part are specific to the 5 Series E34 524td produced during 1991. These technical specifications ensure that parts like the Output shaft (23211228297) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 260/5/50 gear wheel set,sing part assembly?
- Each item in the Getrag 260/5/50 gear wheel set,sing part corresponds to the numbered list below the illustration. For the 5 Series E34 524td, you can identify the Output shaft by locating its position on the schematic, which then links to the official BMW part number 23211228297 for the Manual Transmission section.
