S5D...G drive shaft/output shaft for BMW 3 Series E36 318tds (2000)

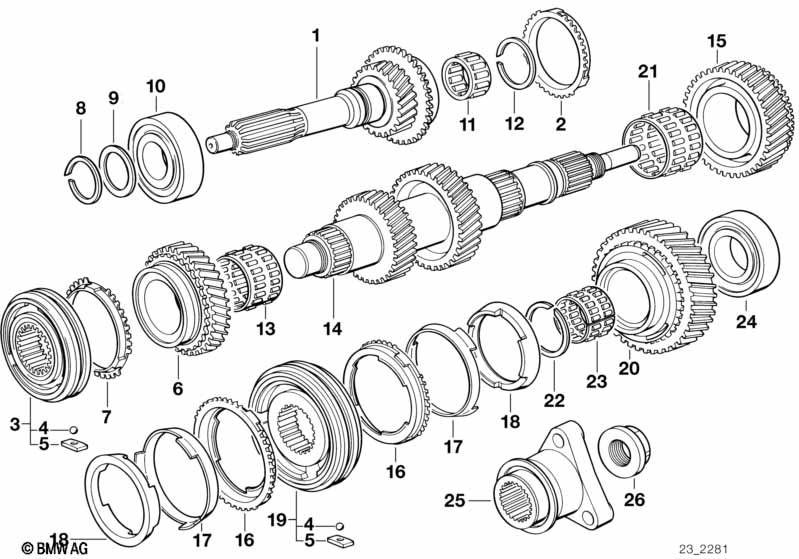

This S5D...G drive shaft/output shaft technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive Shaft | 1 | 23211222807 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Synchronizer ring | 1 | 23227518214 | $90.84 | Shop at ECS Tuning | |||||
| 03 | Guide sleeve 5th and reverse gear | 1 | 23237511330 | $273.13 | Shop at ECS Tuning | |||||
| 04 | Ball | 6 | 23231224365 | $1.02 | Shop at ECS Tuning | |||||
| 05 | Insert | 6 | 23231224364 | $2.82 | Shop at ECS Tuning | |||||
| 06 | Reverse shift gear | 1 | 23221222806 | ENDED, +core | Shop at ECS Tuning | |||||
| 07 | Synchronizer ring | 1 | 23221228488 | $90.84 | Shop at ECS Tuning | |||||
| 08 | Snap ring | 30X2 | 1 | 23221282533 | $2.93 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,3 | 1 | 23221282532 | $4.67 | Shop at ECS Tuning | ||||
| 10 | Grooved ball bearing | 30X72X20 | 1 | 23111228320 | $67.87 | Shop at ECS Tuning | ||||
| 11 | Roller cage | 1 | 23221282571 | $12.52 | Shop at ECS Tuning | |||||
| 12 | Snap ring | 35X2,00 | 1 | 23211209359 | $2.58 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 35X2,10 | 1 | 23211209360 | $2.58 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 35X2,20 | 1 | 23211209361 | $2.58 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 35X2,30 | 1 | 23211209362 | $2.17 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 35X2,25 | 1 | 23231228401 | $2.97 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 35X2,15 | 1 | 23231228402 | $3.05 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 35X2,05 | 1 | 23231228403 | $3.05 | Shop at ECS Tuning | ||||
| 13 | Needle cage | 38X43X29,8 | 1 | 23211282572 | $17.25 | Shop at ECS Tuning | ||||
| 14 | Output shaft | 1 | 23221222883 | ENDED, +core | Shop at ECS Tuning | |||||
| 15 | Shift gear for 2nd. gear | 1 | 23221222822 | Shop at ECS Tuning | ||||||
| 16 | Synchronizer ring | 2 | 23231228322 | $90.84 | Shop at ECS Tuning | |||||
| 17 | Conical ring | 2 | 23231222406 | $59.25 | Shop at ECS Tuning | |||||
| 18 | Friction ring | 2 | 23231228324 | $62.01 | Shop at ECS Tuning | |||||
| 19 | Guide sleeve 1st and 2nd gear | 1 | 23237511292 | $304.61 | Shop at ECS Tuning | |||||
| 20 | Shift gear for 1st. gear | 1 | 23221222825 | ENDED | Shop at ECS Tuning | |||||
| 21 | Needle cage | 42X47X34 | 1 | 23221282575 | $21.82 | Shop at ECS Tuning | ||||
| 22 | Snap ring | 38X1,70 | 1 | 23231228448 | $3.05 | Shop at ECS Tuning | ||||
| 22 | Snap ring | 38X1,75 | 1 | 23231228449 | $3.05 | Shop at ECS Tuning | ||||
| 22 | Snap ring | 38X1,80 | 1 | 23231228450 | $3.05 | Shop at ECS Tuning | ||||
| 22 | Snap ring | 38X1,85 | 1 | 23231228451 | $3.05 | Shop at ECS Tuning | ||||
| 22 | Snap ring | 38X1,90 | 1 | 23231228452 | $3.05 | Shop at ECS Tuning | ||||
| 23 | Needle cage | 30X35X31,8 | 1 | 23221282577 | $17.42 | Shop at ECS Tuning | ||||
| 24 | Grooved ball bearing | 30X72X20 | 1 | 23111228320 | $67.87 | Shop at ECS Tuning | ||||
| 25 | Output flange | 1 | 23217504491 | $182.78 | +core | Shop at ECS Tuning | ||||
| 26 | Collar nut | M20X1,5 | 1 | 23217572241 | $10.36 | Shop at ECS Tuning |
