Getrag 242 gear wheel set parts/Rep.kits for BMW 3 Series E21 320 (1979)

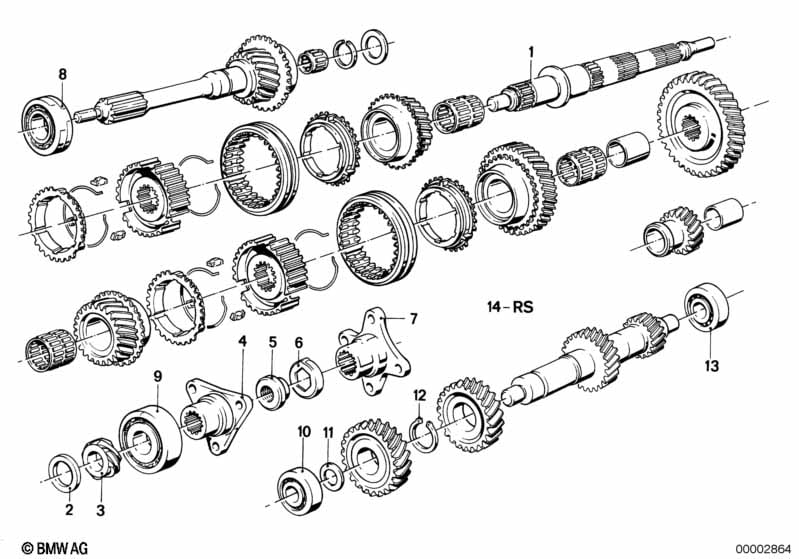

This Getrag 242 gear wheel set parts/Rep.kits technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft | 1 | 08/1977 | 23211206939 | $934.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Shim | 33,1X42X2,10 | X | 08/1977 | 23221630215 | $4.83 | Shop at ECS Tuning | |||
| 02 | Shim | 33,1X42X2,15 | X | 08/1977 | 23221630216 | $5.17 | Shop at ECS Tuning | |||
| 02 | Shim | 33,1X42X2,20 | X | 08/1977 | 23221630217 | $5.17 | ENDED | Shop at ECS Tuning | ||
| 02 | Shim | 33,1X42X2,25 | X | 08/1977 | 23221630218 | $4.97 | Shop at ECS Tuning | |||
| 02 | Shim | 33,1X42X2,30 | X | 08/1977 | 23221630219 | $5.17 | Shop at ECS Tuning | |||
| 02 | Shim | 33,1X42X2,35 | X | 08/1977 | 23221630220 | $5.17 | ENDED | Shop at ECS Tuning | ||
| 02 | Shim | 33,1X42X2,40 | X | 08/1977 | 23221630221 | $5.17 | Shop at ECS Tuning | |||
| 03 | Speedometer drive | 1 | 08/1977 | 23221490119 | $135.09 | Shop at ECS Tuning | ||||
| 05 | Collar nut | M20X1,5 | 1 | 08/1977 | 33121200258 | $8.56 | Shop at ECS Tuning | |||
| 06 | Securing plate | 1 | 08/1977 | 23211490120 | $1.43 | Shop at ECS Tuning | ||||
| 07 | Output flange | 4-ARM/27 ZÄHNE | 1 | 08/1977 | 08/1980 | 23211204748 | $74.83 | Shop at ECS Tuning | ||
| 08 | Grooved ball bearing | 62X30X16 | 1 | 08/1977 | 23121204198 | $16.12 | Shop at ECS Tuning | |||
| 09 | Ball bearing | 72X30X19 | 1 | 08/1977 | 23129981441 | Shop at ECS Tuning | ||||
| 10 | Grooved ball bearing | 6304 C3 | 1 | 08/1977 | 23121231495 | $27.14 | Shop at ECS Tuning | |||
| 11 | Shim | 20X28X0,5 | X | 08/1977 | 23111204583 | $2.75 | ENDED | Shop at ECS Tuning | ||
| 11 | Shim | 20X28X0,4 | X | 08/1977 | 23111204584 | $0.66 | Shop at ECS Tuning | |||
| 11 | Shim | 20X28X0,3 | X | 08/1977 | 23121606151 | $0.42 | Shop at ECS Tuning | |||
| 12 | Lock Ring | 38X1,75 | 1 | 08/1977 | 07119934234 | $0.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Cylindrical roller bearing,radial | 52X20X15 | 1 | 08/1977 | 23121206954 | $51.79 | Shop at ECS Tuning | |||
| 14 | Bearing repair kit | 1 | 08/1977 | 23121205583 | $81.80 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit gear wheel 1.,2.,3.,4.gear | 1 | 08/1977 | 23211207174 | $2259.90 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit gear wheels 4th gear | 1 | 08/1977 | 23211207175 | $1182.96 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit gear wheels 3rd gear | 1 | 08/1977 | 23221206986 | $554.65 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit gear wheels 1st A.2nd gear | 1 | 08/1977 | 23221206987 | $1026.72 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
