Getrag 242 inner gear shift./speedom dri for BMW 3 Series E21 318 (1977)

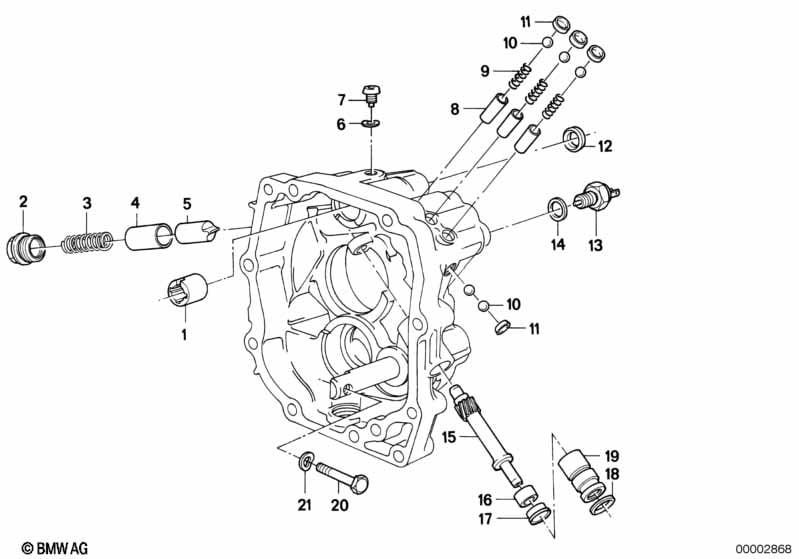

This Getrag 242 inner gear shift./speedom dri technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splined sleeve | 1 | 08/1977 | 23311224272 | $89.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Splined sleeve | 1 | 08/1977 | 23311224272 | $89.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Selector rod | 1 | 08/1977 | 23311224269 | $43.52 | ENDED | Shop at ECS Tuning | |||
| 02 | Screw plug | M20X1,5 | 1 | 08/1977 | 23111206985 | $6.36 | ENDED | Shop at ECS Tuning | ||
| 03 | Spring | 2,8MM | 1 | 08/1977 | 23111666272 | $2.39 | Shop at ECS Tuning | |||
| 04 | Bush | 1 | 08/1977 | 23311206984 | $9.93 | ENDED | Shop at ECS Tuning | |||
| 05 | Pin | 1 | 08/1977 | 23311666266 | $13.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Wave washer | 8,4X15-ZNS3 | 1 | 08/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 07 | Fillister-head screw | M8X12 | 1 | 08/1977 | 07119919724 | $5.24 | ENDED | Shop at ECS Tuning | ||
| 08 | Bush | 3 | 08/1977 | 23311207056 | $1.11 | Shop at ECS Tuning | ||||
| 09 | Compression spring | D=1,3MM | 3 | 08/1977 | 23111666227 | $1.83 | Shop at ECS Tuning | |||
| 10 | Ball | 8G20 | 5 | 08/1977 | 07119986280 | $0.66 | Shop at ECS Tuning | |||
| 11 | Cover lid | D=12MM | 4 | 08/1977 | 07119906393 | Shop at ECS Tuning | ||||
| 12 | Shaft seal | 15X21X5 | 1 | 08/1977 | 23128677736 | Shop at ECS Tuning | ||||
| 13 | Switch, reversing light and idle gear | M12X1,5 | 1 | 08/1977 | 23141352153 | $13.53 | Shop at ECS Tuning | |||
| 14 | Gasket ring | A12X15,5 AL | 1 | 08/1977 | 07119963130 | $0.09 | Shop at ECS Tuning | |||
| 15 | Speedometer drive | 1 | 08/1977 | 23221200416 | $105.44 | Shop at ECS Tuning | ||||
| 16 | Bush | 1 | 08/1977 | 23121630176 | $1.21 | ENDED | Shop at ECS Tuning | |||
| 17 | Shaft seal | 8X14X6 | 1 | 08/1977 | 23121490192 | $14.05 | Shop at ECS Tuning | |||
| 18 | O-ring | 14,3X2,4-N-FPM | 1 | 08/1977 | 07119904964 | $2.13 | Shop at ECS Tuning | |||
| 19 | Adaptor | 19MM | 1 | 08/1977 | 23121490117 | $8.31 | Shop at ECS Tuning | |||
| 20 | Hex bolt | M10X40 | 1 | 08/1977 | 07119912630 | $0.46 | ENDED | Shop at ECS Tuning | ||
| 21 | Wave washer | B10-ZNS3 | 1 | 08/1977 | 07119904463 | Shop at ECS Tuning | ||||
