Getrag 262 cover+attach.parts for BMW 5 Series E12 528i (1980)

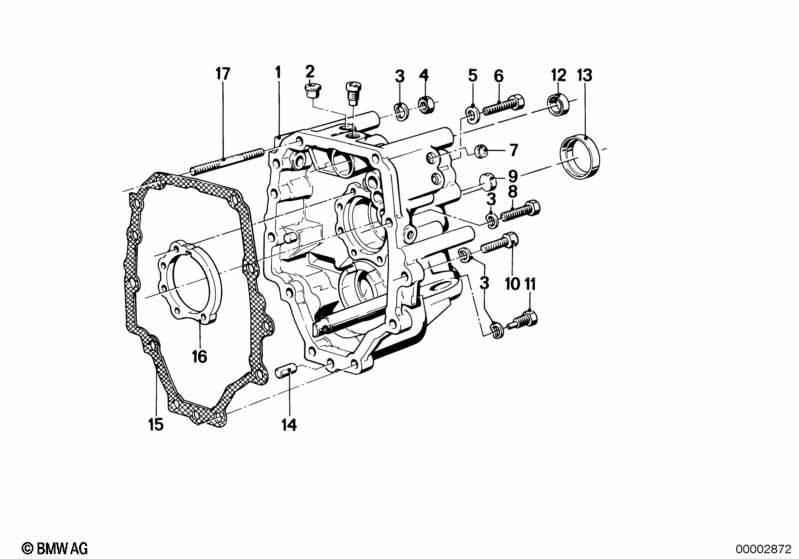

This Getrag 262 cover+attach.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission cover | 1 | 23111207237 | $563.58 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | 4-gear transmission | 262/9 CA | X | 23001203894 | $2008.80 | ENDED | Shop at ECS Tuning | |||
| -- | 4-gear transmission | 262/9.20CD | X | 23001206498 | $2008.80 | ENDED | Shop at ECS Tuning | |||
| -- | 4-gear transmission | 262/9.40 CH | X | 23001209460 | ENDED | Shop at ECS Tuning | ||||
| 01 | Transmission cover | 1 | 23111207238 | $563.58 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | 4-gear transmission | 262/9.20CD | X | 23001206498 | $2008.80 | ENDED | Shop at ECS Tuning | |||
| -- | 4-gear transmission | 262/9.40 CH | X | 23001209460 | ENDED | Shop at ECS Tuning | ||||
| -- | 4-gear transmission | 262/9.45 CK | X | 23001209480 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO REVERSE GEAR BRAKE | ||||||||||
| 01 | Transmission cover | 1 | 23111224010 | $348.19 | ENDED | Shop at ECS Tuning | ||||
| 02 | Ventilation valve | 1 | 23111224051 | $10.14 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 8,4X15-ZNS3 | 9 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 5 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 06 | Oval-head screw with anti-rotation lock | M6X35-8.8-ZNS3 | 5 | 07129904259 | $2.51 | Shop at ECS Tuning | ||||
| 07 | Cover lid | D=12MM | 3 | 07119906393 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X35 | 7 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Cover lid | D=15MM | 4 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 12 | Shaft seal | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 13 | Shaft seal | 40X55X8 | 1 | 23121205342 | Shop at ECS Tuning | |||||
| 14 | Dowel pin | 10X32 | 2 | 07119942304 | $0.92 | Shop at ECS Tuning | ||||
| 15 | Gasket Asbestos Free | 1 | 23121222359 | $17.82 | Shop at ECS Tuning | |||||
| 16 | backup ring | 1 | 23111205524 | $63.89 | ENDED | Shop at ECS Tuning | ||||
| 17 | Stud bolt | M8X130 | 2 | 07119908367 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
