Getrag 262 housing+attaching parts for BMW 6 Series E24 633CSi (1984)

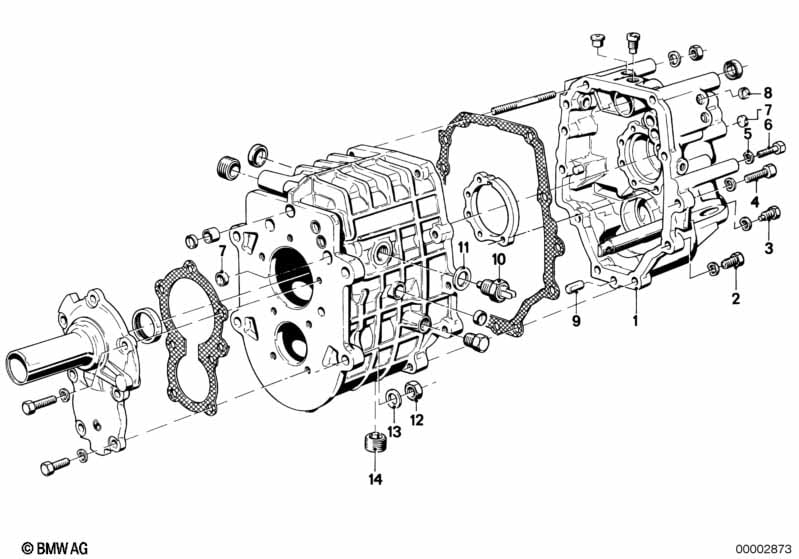

This Getrag 262 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission cover | 1 | 23111207237 | $563.58 | ENDED | Shop at ECS Tuning | ||||
| 01 | Transmission cover | 1 | 23111207779 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO REVERSE GEAR BRAKE | ||||||||||
| 01 | Transmission cover | 1 | 23111224010 | $348.19 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X35 | 7 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Oval-head screw with anti-rotation lock | M6X35-8.8-ZNS3 | 5 | 07129904259 | $2.51 | Shop at ECS Tuning | ||||
| 07 | Cover lid | D=15MM | 4 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Cover lid | D=12MM | 3 | 07119906393 | Shop at ECS Tuning | |||||
| 09 | Dowel pin | 10X32 | 2 | 07119942304 | $0.92 | Shop at ECS Tuning | ||||
| 10 | Backup light switch | M12X1,5 | 1 | 23141354071 | $16.78 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M12 | 4 | 07119922139 | $2.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Screw plug | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
