Getrag 262 gear wheel set,single parts for BMW 5 Series E12 528i (1980)

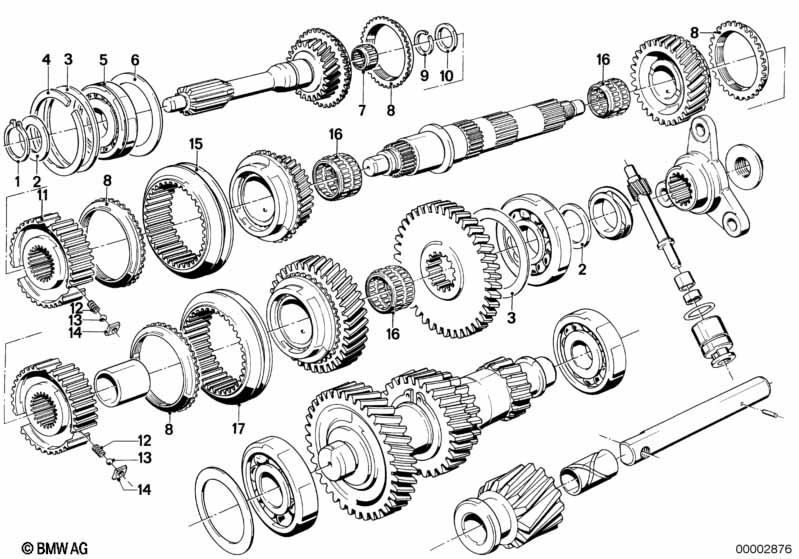

This Getrag 262 gear wheel set,single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock Ring | A30X2,5 | 1 | 23121630170 | $3.30 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,5 | X | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 02 | Support | 30X42X2,4 | X | 23121630151 | $3.13 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,6 | X | 23211207172 | $2.90 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,65 | X | 23221224470 | $5.90 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,55 | X | 23221224469 | $4.24 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,45 | X | 23221224468 | $4.24 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,35 | X | 23221224467 | $4.67 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,3 | X | 23121630152 | $3.13 | Shop at ECS Tuning | ||||
| 03 | Shim | 56X72X0,3 | X | 23121200438 | $2.82 | Shop at ECS Tuning | ||||
| 03 | Shim | 56X72X0,4 | X | 23121205767 | $1.39 | Shop at ECS Tuning | ||||
| 03 | Shim | 56X72X0,5 | X | 23121205768 | $4.79 | Shop at ECS Tuning | ||||
| 04 | Snap ring | SP72 | 1 | 07119933305 | ENDED | Shop at ECS Tuning | ||||
| 05 | Ball bearing | 72X30X19 | 1 | 23121205197 | Shop at ECS Tuning | |||||
| 06 | Spacer | 1 | 23211202729 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 07 | Needle cage | 30X22X15 | 1 | 23221202730 | $43.84 | ENDED | Shop at ECS Tuning | |||
| 08 | Synchronizer ring | 4 | 23231202739 | $86.78 | Shop at ECS Tuning | |||||
| 09 | Snap ring | 1 | 23221630172 | $5.75 | Shop at ECS Tuning | |||||
| 10 | Support | 28X37X4,0 | X | 23221202740 | $7.53 | Shop at ECS Tuning | ||||
| 10 | Support | 28X37X3,9 | X | 23221202741 | $8.77 | Shop at ECS Tuning | ||||
| 10 | Support | 28X37X3,8 | X | 23221202742 | $6.25 | Shop at ECS Tuning | ||||
| 10 | Support | 28X37X3,7 | X | 23221203690 | $6.25 | ENDED | Shop at ECS Tuning | |||
| 11 | Guide sleeve assembly | 1 | 23231205226 | $430.32 | ENDED | Shop at ECS Tuning | ||||
| 11 | Guide sleeve 3rd and 4th gear | 1 | 23231228479 | $416.27 | ENDED | Shop at ECS Tuning | ||||
| 12 | Compression spring | 6 | 23231202738 | $1.63 | ENDED | Shop at ECS Tuning | ||||
| 13 | Ball | 6,5MM III | 6 | 07119986272 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 14 | Insert | 6 | 23231202736 | $6.05 | ENDED | Shop at ECS Tuning | ||||
| 15 | Guide sleeve assembly | 1 | 23231205226 | $430.32 | ENDED | Shop at ECS Tuning | ||||
| 15 | Guide sleeve 3rd and 4th gear | 1 | 23231228479 | $416.27 | ENDED | Shop at ECS Tuning | ||||
| 16 | Needle cage | 3 | 23221228279 | $43.20 | Shop at ECS Tuning | |||||
| 17 | Guide sleeve 1st and 2nd gear | 1 | 23231209363 | $416.27 | ENDED | Shop at ECS Tuning | ||||
| 17 | Guide sleeve 1st and 2nd gear | 1 | 23231228478 | $338.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
