Getrag 262 inner gear shifting parts for BMW 5 Series E12 528i (1980)

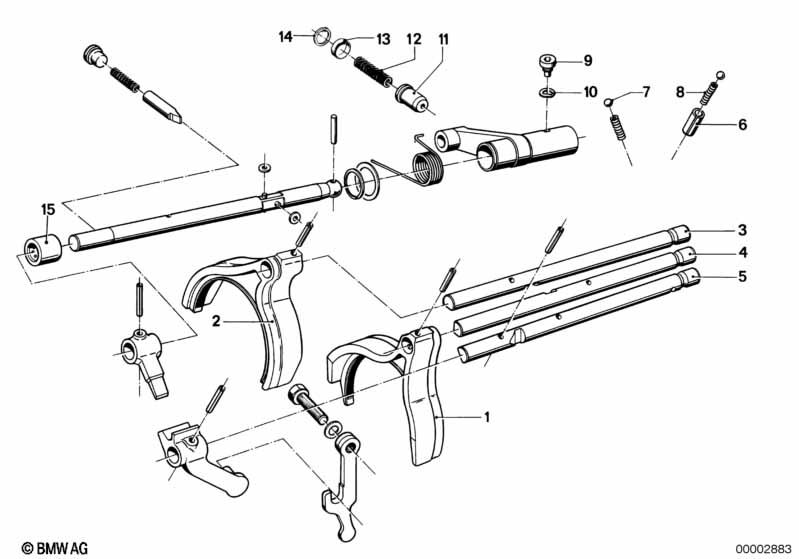

This Getrag 262 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO 1ST AND 2ND GEAR | ||||||||||
| 01 | Shifting fork | 1 | 23311202672 | $91.89 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO 3RD AND 4TH GEAR | ||||||||||
| 02 | Shifting fork | 1 | 23311202674 | $79.48 | Shop at ECS Tuning | |||||
| 02 | Shifting fork | 1 | 23311205076 | $101.28 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shifting rod 3.and 4.gear | 1 | 23311202756 | $51.34 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shifting rod 1.and 2.gear | 1 | 23311202757 | $360.47 | Shop at ECS Tuning | |||||
| 04 | Shifting rod 1.and 2.gear | 1 | 23311220308 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Selector cam | 1 | 23311224054 | $213.16 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shifting rod reverse gear | 1 | 23311202758 | $51.34 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bush | 2 | 23311207056 | $1.11 | Shop at ECS Tuning | |||||
| 07 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 08 | Compression spring | 0,9MM | 2 | 23311205046 | $1.95 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M8X12 | 1 | 23311224039 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 10 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Locking pin | 1 | 23311202764 | $26.85 | ENDED | Shop at ECS Tuning | ||||
| 12 | Compression spring | D=1,7MM | 1 | 23311204513 | $2.51 | Shop at ECS Tuning | ||||
| 13 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 14 | Lock Ring | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 15 | Bearing ball cage | 21X15X22 | 1 | 23111206948 | Shop at ECS Tuning | |||||
| 15 | Bearing ball cage | 21X15X22 | 1 | 23111228404 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
