Getrag 262 speedometer drive for BMW 6 Series E24 633CSi (1981)

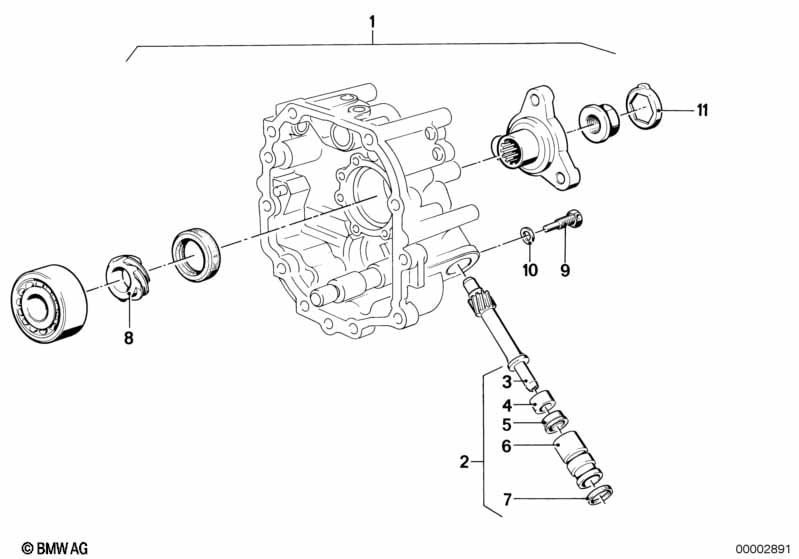

This Getrag 262 speedometer drive technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conversion set speedo drive | 1 | 23121700050 | ENDED | Shop at ECS Tuning | |||||
| 02 | Speedometer drive | 1 | 23211207772 | $149.91 | ENDED | Shop at ECS Tuning | ||||
| 03 | Speedometer drive | 1 | 23221200416 | $105.44 | Shop at ECS Tuning | |||||
| 04 | Bush | 1 | 23121630176 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shaft seal | 8X14X6 | 1 | 23121490192 | $14.05 | Shop at ECS Tuning | ||||
| 06 | Adaptor | 1 | 23211202751 | $88.92 | ENDED | Shop at ECS Tuning | ||||
| 07 | O-ring | 19,5X3 | 1 | 11431740045 | $1.81 | Shop at ECS Tuning | ||||
| 08 | Speedometer drive | 1 | 23221490119 | $135.09 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 10 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
