Getrag 262 inner gear shifting parts for BMW 5 Series E12 528 (1977)

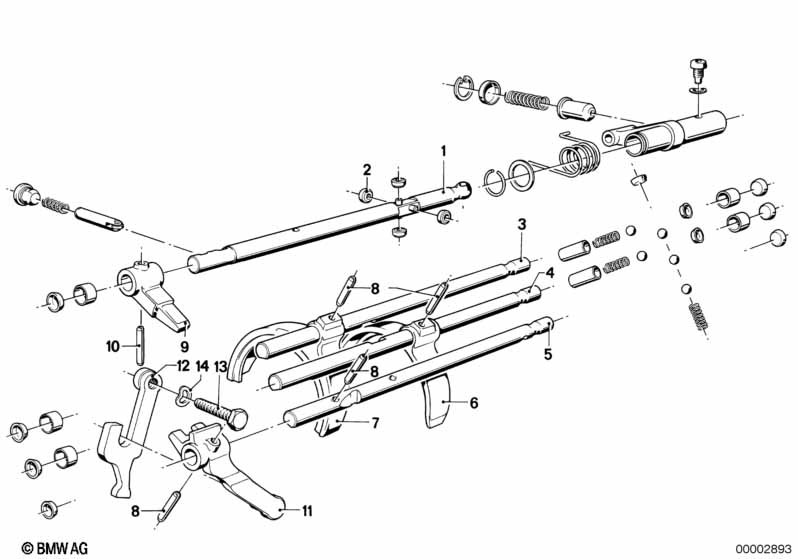

This Getrag 262 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector shaft | 1 | 23319058951 | $267.84 | ENDED | Shop at ECS Tuning | ||||
| 02 | Roll pin | 4 | 23317539086 | $10.41 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shifting rod 3.and 4.gear | 1 | 23311202756 | $51.34 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shifting rod 1.and 2.gear | 1 | 23311202757 | $360.47 | Shop at ECS Tuning | |||||
| 04 | Shifting rod 1.and 2.gear | 1 | 23311220308 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Selector cam | 1 | 23311224054 | $213.16 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shifting rod reverse gear | 1 | 23311202758 | $51.34 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO 1ST AND 2ND GEAR | ||||||||||
| 06 | Shifting fork | 1 | 23311202672 | $91.89 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO 3RD AND 4TH GEAR | ||||||||||
| 07 | Shifting fork | 1 | 23311202674 | $79.48 | Shop at ECS Tuning | |||||
| 07 | Shifting fork | 1 | 23311205076 | $101.28 | ENDED | Shop at ECS Tuning | ||||
| 08 | Roll pin | 6X28 | 4 | 07119941381 | $1.22 | Shop at ECS Tuning | ||||
| 09 | Shift | 1 | 23311202761 | $64.93 | ENDED | Shop at ECS Tuning | ||||
| 10 | Roll pin | 6X28 | 1 | 07119941270 | $0.95 | ENDED | Shop at ECS Tuning | |||
| 11 | Driving dog | 1 | 23311202754 | ENDED | Shop at ECS Tuning | |||||
| 12 | Shift lever | 1 | 23311202755 | $47.99 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO SYNCHRON.REVERSE GEAR | ||||||||||
| 12 | Shift lever | 1 | 23311224018 | $43.25 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M10X1X35 | 1 | 07119911636 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
