Gearbox suspension for BMW 5 Series E34 525tds (1996)

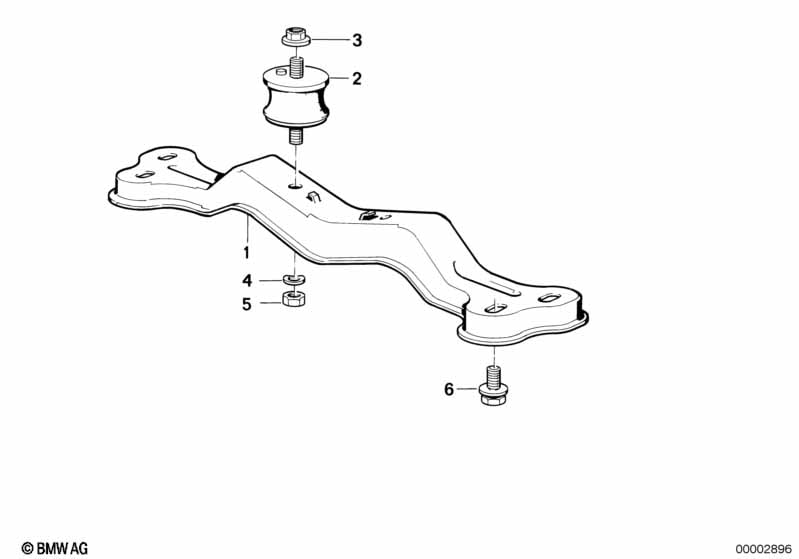

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross member | 1 | 23701138578 | $38.30 | Shop at ECS Tuning | |||||
| 02 | Transmission bearing set | 2 | 22316771221 | $13.40 | +core | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds Gearbox suspension?
- This technical diagram illustrates the Gearbox suspension within the Manual Transmission group for the 5 Series E34 525tds produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Cross member (Part #23701138578).
- Which models use the hardware listed in this Gearbox suspension?
- The hardware and components featured in the Gearbox suspension are specific to the 5 Series E34 525tds produced during 1996. These technical specifications ensure that parts like the Cross member (23701138578) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox suspension assembly?
- Each item in the Gearbox suspension corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the Cross member by locating its position on the schematic, which then links to the official BMW part number 23701138578 for the Manual Transmission section.
