Getrag 262 housing+attaching parts for BMW 7 Series E23 732i (1982)

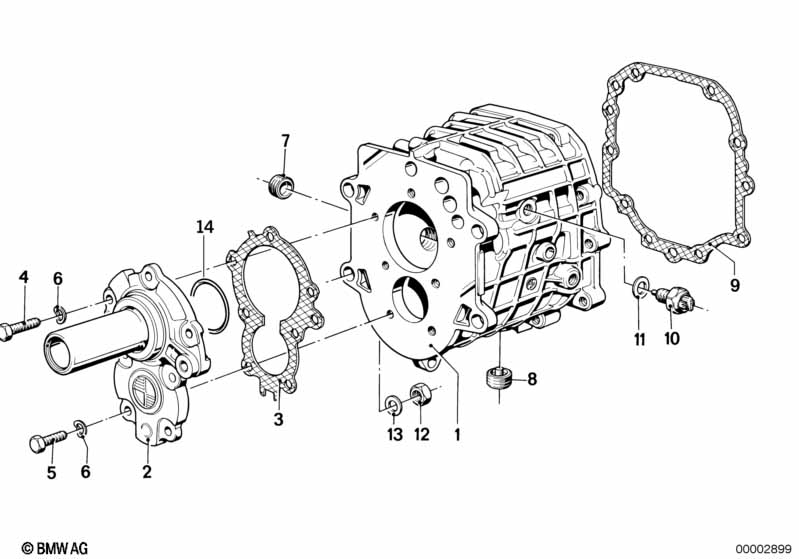

This Getrag 262 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 23111207777 | $514.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Housing cover | 1 | 23111228311 | $233.58 | Shop at ECS Tuning | |||||
| 03 | Gasket Asbestos Free | 1 | 23121222357 | $13.93 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X30 | 3 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X22-8.8-ZNS3 | 4 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Screw plug | M24X1,5 | 1 | 27111226798 | $5.61 | Shop at ECS Tuning | ||||
| 08 | Screw plug | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
| 09 | Gasket Asbestos Free | 1 | 23121222359 | $17.82 | Shop at ECS Tuning | |||||
| 10 | Backup light switch | M12X1,5 | 1 | 23141354071 | $16.78 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M12 | 4 | 07119922139 | $2.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Washer | A13/HV-ZNS | 4 | 04/1986 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 13 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 14 | O-ring | 45X2 | 1 | 23111228313 | $6.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 732i Getrag 262 housing+attaching parts?
- This technical diagram illustrates the Getrag 262 housing+attaching parts within the Manual Transmission group for the 7 Series E23 732i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Transmission housing (Part #23111207777).
- Which models use the hardware listed in this Getrag 262 housing+attaching parts?
- The hardware and components featured in the Getrag 262 housing+attaching parts are specific to the 7 Series E23 732i produced during 1982. These technical specifications ensure that parts like the Transmission housing (23111207777) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 262 housing+attaching parts assembly?
- Each item in the Getrag 262 housing+attaching parts corresponds to the numbered list below the illustration. For the 7 Series E23 732i, you can identify the Transmission housing by locating its position on the schematic, which then links to the official BMW part number 23111207777 for the Manual Transmission section.
