Gearbox mounting parts for BMW 3 Series E30 318i (1991)

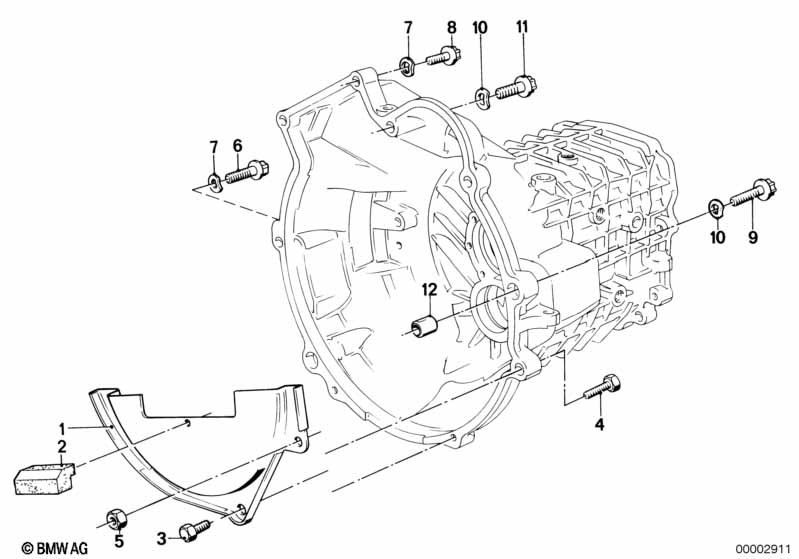

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 316A(00)5996787 / 318i(0)8356832 / 318iA(0)5188890 / 320/6(0)6977066 / 320/6(00)6724806 / 316A(00)5996787 / 318i(0)8356832 / 318iA(0)5188890 / 320/6(0)6977066 / 320/6(00)6724806 / |
|||||||||
| 06 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M10X50 | 2 | 07119913859 | $0.89 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 12 | Dowel | D=14,5/12,6MM | 2 | 23111606156 | $2.18 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Gearbox mounting parts?
- This technical diagram illustrates the Gearbox mounting parts within the Manual Transmission group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119902955).
- Which models use the hardware listed in this Gearbox mounting parts?
- The hardware and components featured in the Gearbox mounting parts are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Hex bolt (07119902955) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting parts assembly?
- Each item in the Gearbox mounting parts corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119902955 for the Manual Transmission section.
