Getrag 240 gear wheel set,single parts for BMW 3 Series E30 320i (1990)

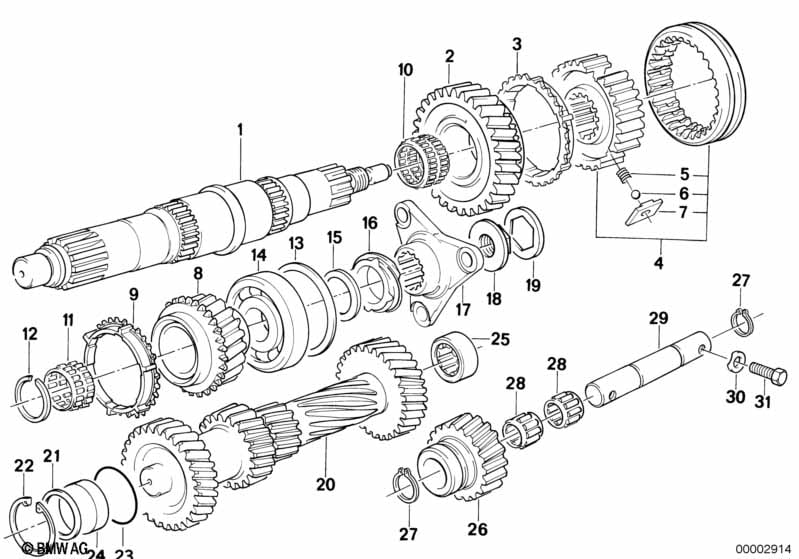

This Getrag 240 gear wheel set,single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft | 1 | 23211228294 | $683.55 | ENDED | Shop at ECS Tuning | ||||
| 01 | Output shaft | 1 | 23211228294 | $683.55 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 23221228031 | $54.13 | Shop at ECS Tuning | |||||
| -- | Ball | 1 | 23221228032 | $0.36 | ENDED | Shop at ECS Tuning | ||||
| -- | Stop disk | 1 | 23221228225 | $12.00 | Shop at ECS Tuning | |||||
| For vehicles with Taxi package |
S581A=Yes |
|||||||||
| 01 | Output shaft | 1 | 23211228295 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Output shaft | 1 | 23211228295 | ENDED | Shop at ECS Tuning | |||||
| 02 | Reverse shift gear | 1 | 12/1987 | 23221228209 | $345.96 | ENDED | Shop at ECS Tuning | |||
| 03 | Synchronizer ring | 1 | 12/1987 | 23231228241 | $94.68 | Shop at ECS Tuning | ||||
| 04 | Guide sleeve 5th and reverse gear | 1 | 12/1987 | 23231282434 | $224.32 | ENDED | Shop at ECS Tuning | |||
| 05 | Compression spring | X | 12/1987 | 23231224368 | $6.45 | Shop at ECS Tuning | ||||
| 06 | Ball | X | 12/1987 | 23231224365 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Insert | X | 12/1987 | 23231228244 | $3.67 | Shop at ECS Tuning | ||||
| 08 | Shift gear for 5th. gear | 1 | 23221228044 | $299.09 | ENDED | Shop at ECS Tuning | ||||
| 09 | Synchronizer ring | 1 | 12/1987 | 23231228242 | $90.84 | Shop at ECS Tuning | ||||
| 10 | Needle cage | 42X47X28,5 | 1 | 23221224060 | $17.60 | Shop at ECS Tuning | ||||
| 11 | Needle cage | 30X34X32,5 | 1 | 23221224097 | $14.95 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 36,5X2,0 | X | 23221224112 | $5.10 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 36,5X1,9 | X | 23221224113 | $1.69 | ENDED | Shop at ECS Tuning | |||
| 12 | Snap ring | 36,5X1,7 | X | 23221224114 | $3.07 | Shop at ECS Tuning | ||||
| 12 | Snap ring | 36,5X1,8 | X | 23221224174 | $2.50 | Shop at ECS Tuning | ||||
| 13 | Shim | 72X60X0,3 | X | 23221224086 | $1.87 | ENDED | Shop at ECS Tuning | |||
| 13 | Shim | 72X60X0,4 | X | 23221224087 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 13 | Shim | 72X60X0,5 | X | 23221224088 | $1.46 | ENDED | Shop at ECS Tuning | |||
| 14 | Grooved ball bearing | 72X25X17 | 1 | 23121228292 | $80.40 | Shop at ECS Tuning | ||||
| 17 | Output flange | 1 | 23211224091 | $182.78 | Shop at ECS Tuning | |||||
| 18 | Collar nut | M20X1,5 | 1 | 23217572241 | $10.36 | Shop at ECS Tuning | ||||
| 19 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 20 | Countershaft | 1 | 23211228251 | $697.50 | ENDED | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X1,7 | X | 23221224092 | $1.58 | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X1,8 | X | 23221224093 | $2.43 | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X2,0 | X | 23221224094 | $1.22 | Shop at ECS Tuning | ||||
| 21 | Shim | 44X36,5X2,1 | X | 23221224095 | $1.22 | Shop at ECS Tuning | ||||
| 21 | Shim | X | 23221224096 | $1.22 | ENDED | Shop at ECS Tuning | ||||
| 22 | Lock Ring | 44X1,75 | 1 | 23221224078 | $2.13 | Shop at ECS Tuning | ||||
| 23 | O-ring | 44X1,5 | 1 | 23211228152 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 24 | Roller bearing | 44X25X19,65 | 1 | 23121224076 | $38.75 | Shop at ECS Tuning | ||||
| 25 | Roller bushing | 44X25X19,65 | 1 | 23121224077 | Shop at ECS Tuning | |||||
| 26 | Reverse gear | Z=24 | 1 | 23221224115 | $239.94 | ENDED | Shop at ECS Tuning | |||
| 27 | Lock Ring | 20X1,2 | 2 | 23221224109 | $0.56 | Shop at ECS Tuning | ||||
| 28 | Needle cage | 26X20X17 | 2 | 23211204207 | $26.64 | Shop at ECS Tuning | ||||
| 29 | Pin | 1 | 23211224110 | $29.16 | ENDED | Shop at ECS Tuning | ||||
| 30 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 31 | Hex bolt | M8X25 | 2 | 34331152651 | $12.34 | Shop at ECS Tuning | ||||
