Getrag 240 inner gear shifting parts for BMW 3 Series E30 320i (1991)

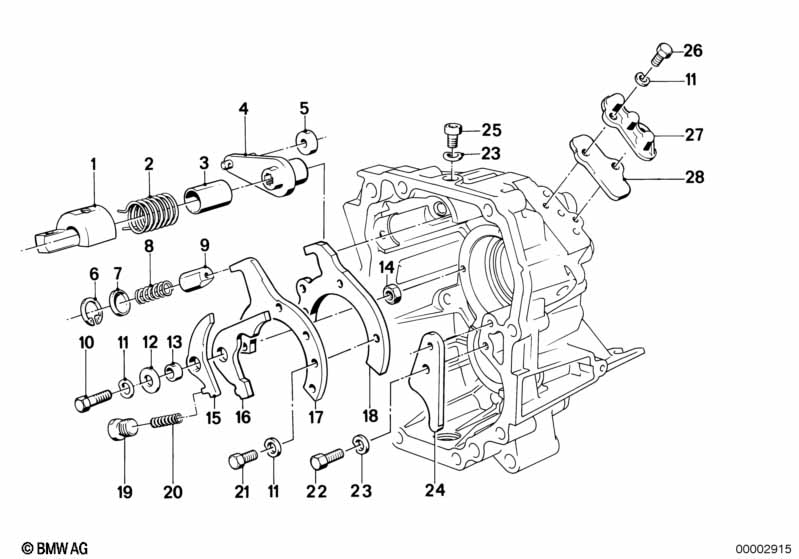

This Getrag 240 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 23311224140 | $31.28 | Shop at ECS Tuning | |||||
| 02 | Retainer spring | D=2,8 | 1 | 23311224128 | $3.68 | ENDED | Shop at ECS Tuning | |||
| 03 | Sleeve | 25X22X38,5 | 1 | 23311224126 | $3.27 | ENDED | Shop at ECS Tuning | |||
| 04 | Selector cam | 1 | 23311224123 | $145.90 | ENDED | Shop at ECS Tuning | ||||
| 05 | Roll pin | 1 | 23317539087 | $10.62 | Shop at ECS Tuning | |||||
| 06 | Lock Ring | 20X1,5 | 1 | 07119934627 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 23311224215 | $2.68 | Shop at ECS Tuning | |||||
| 09 | Locking pin | 1 | 23311224130 | $11.96 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X28-8.8 PHR | 1 | 07119913499 | $0.60 | Shop at ECS Tuning | ||||
| 12 | Shim | 21X6,5X2 | 1 | 23221224085 | $0.16 | ENDED | Shop at ECS Tuning | |||
| 13 | Ring | 1 | 23221224396 | $1.45 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Lever | 1 | 23311224080 | $8.42 | ENDED | Shop at ECS Tuning | ||||
| 17 | Holder | 1 | 23221224082 | $22.21 | ENDED | Shop at ECS Tuning | ||||
| 19 | Screw plug | M16X1,5 | 1 | 07119902292 | $2.83 | Shop at ECS Tuning | ||||
| 20 | Compression spring | D=1,7 | 1 | 23311228284 | $2.71 | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 22 | Hex bolt | M8X20 | 1 | 23227545751 | $1.68 | Shop at ECS Tuning | ||||
| 23 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 24 | Support plate | 1 | 23221224116 | $10.71 | ENDED | Shop at ECS Tuning | ||||
| 26 | Clamping bolt | M6X15 | 2 | 07119911218 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 28 | Cover lid | 1 | 23131224408 | $8.73 | Shop at ECS Tuning |
