ZF s5-16 inner gear shifting parts for BMW 3 Series E30 318i (1985)

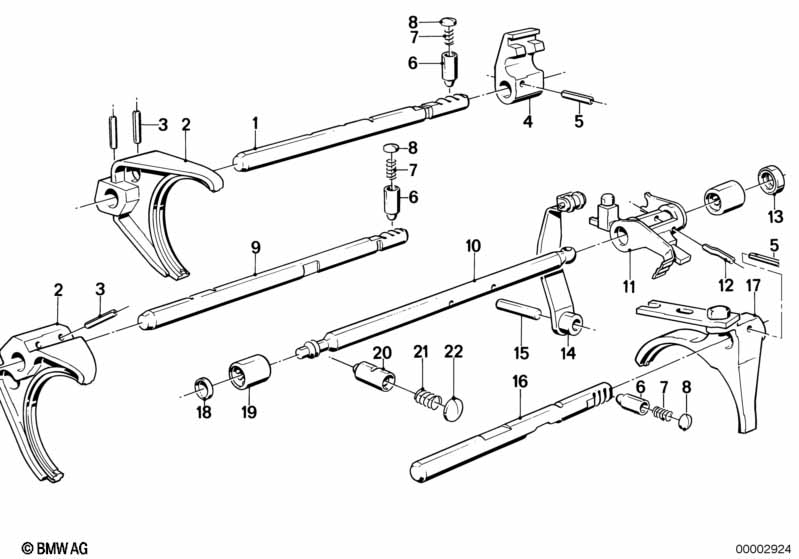

This ZF s5-16 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.

ZF s5-16 inner gear shifting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shifting rod 1.and 2.gear 1 23311224568 $73.38 ENDED Shop at ECS Tuning
02 Shifting fork 2 23311224715 $54.24 Shop at ECS Tuning
03 Roll pin 6X28 4 07119941381 $1.22 Shop at ECS Tuning
04 Driving dog for 1st and 2nd gear 1 23311224570 $91.51 ENDED Shop at ECS Tuning
05 Roll pin 6X28 2 07119941270 $0.95 ENDED Shop at ECS Tuning
06 Locking pin 3 23311224791 $5.48 Shop at ECS Tuning
07 Compression spring 3 23311224575 $1.65 Shop at ECS Tuning
08 Cover lid D=10MM 3 07119937210 $0.64 Shop at ECS Tuning
09 Shifting rod 3.and 4.gear 1 23311224569 $94.64 ENDED Shop at ECS Tuning
10 Selector shaft 1 23311224580 $304.61 ENDED Shop at ECS Tuning
11 Shift 1 23311224782 $300.20 Shop at ECS Tuning
12 Roll pin 5X26 2 07119941122 $0.85 Shop at ECS Tuning
13 Shaft seal 15X21X5 1 23128677736 Shop at ECS Tuning
14 Bow 1 23311224572 $104.51 Shop at ECS Tuning
15 Dowel pin 10X55 1 07119942186 ENDED Shop at ECS Tuning
16 Shifting rod 5st and reverse gear 1 23311224690 $70.03 ENDED Shop at ECS Tuning
17 Shifting fork 5st and reverse gear 1 23311224578 $95.42 ENDED Shop at ECS Tuning
18 Cover lid D=16MM 1 07119937241 $0.91 Shop at ECS Tuning
19 Sleeve 15X21X22 2 23111217276 $13.84 Shop at ECS Tuning
20 Locking pin 2 23311224577 $21.18 Shop at ECS Tuning
21 Compression spring 2 23311224576 $2.23 Shop at ECS Tuning
22 Cover lid D=16MM 2 23311224792 $4.47 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

MANUAL TRANSMISSION MANUAL TRANSMISSION
GEARBOX SUSPENSION GEARBOX SUSPENSION
GEARBOX MOUNTING PARTS GEARBOX MOUNTING PARTS
GETRAG 240 GEAR WHEEL SET,SINGLE PARTS GETRAG 240 GEAR WHEEL SET,SINGLE PARTS
GETRAG 240 GEAR WHEEL SET,SINGLE PARTS GETRAG 240 GEAR WHEEL SET,SINGLE PARTS
GETRAG 240 INNER GEAR SHIFTING PARTS GETRAG 240 INNER GEAR SHIFTING PARTS
GETRAG 240 INNER GEAR SHIFTING PARTS GETRAG 240 INNER GEAR SHIFTING PARTS
ZF S5-16 GEAR WHEEL SET,SINGLE PARTS ZF S5-16 GEAR WHEEL SET,SINGLE PARTS
ZF S5-16 GEAR WHEEL SET,SINGLE PARTS ZF S5-16 GEAR WHEEL SET,SINGLE PARTS
ZF S5-16 HOUSING+ATTACHING PARTS ZF S5-16 HOUSING+ATTACHING PARTS
ZF S5-16 INNER GEAR SHIFTING PARTS ZF S5-16 INNER GEAR SHIFTING PARTS
GETRAG 240 HOUSING+ATTACHING PARTS GETRAG 240 HOUSING+ATTACHING PARTS

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E30 318i ZF s5-16 inner gear shifting parts?
This technical diagram illustrates the ZF s5-16 inner gear shifting parts within the Manual Transmission group for the 3 Series E30 318i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Shifting rod 1.and 2.gear (Part #23311224568).
Which models use the hardware listed in this ZF s5-16 inner gear shifting parts?
The hardware and components featured in the ZF s5-16 inner gear shifting parts are specific to the 3 Series E30 318i produced during 1985. These technical specifications ensure that parts like the Shifting rod 1.and 2.gear (23311224568) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the ZF s5-16 inner gear shifting parts assembly?
Each item in the ZF s5-16 inner gear shifting parts corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Shifting rod 1.and 2.gear by locating its position on the schematic, which then links to the official BMW part number 23311224568 for the Manual Transmission section.
