ZF s5-16 housing+attaching parts for BMW 3 Series E30 320i (1988)

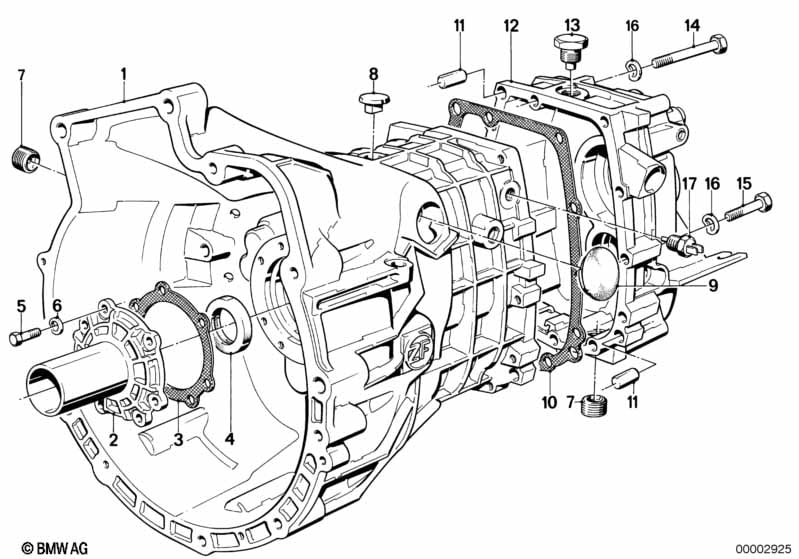

This ZF s5-16 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 23111224605 | ENDED | Shop at ECS Tuning | |||||
| 02 | Guide bush | 1 | 23111224774 | $53.42 | Shop at ECS Tuning | |||||
| 03 | Gasket Asbestos Free | 1 | 23111224694 | $2.03 | Shop at ECS Tuning | |||||
| 04 | Shaft seal | 30X47X7 | 1 | 07119965060 | $6.00 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | AS30X47X7 | 1 | 36318561711 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X18 | 7 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 07 | Screw plug | M24X1,5 | 2 | 27111226798 | $5.61 | Shop at ECS Tuning | ||||
| 08 | Breather | 1 | 23111224789 | $5.63 | Shop at ECS Tuning | |||||
| 09 | Cap | 2 | 23111224505 | $5.78 | Shop at ECS Tuning | |||||
| 10 | Gasket Asbestos Free | 1 | 23111224693 | $6.52 | Shop at ECS Tuning | |||||
| 11 | Dowel pin | 12X24 | 2 | 07119942156 | ENDED | Shop at ECS Tuning | ||||
| 12 | Transmission cover | 1 | 23111224691 | $444.17 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | 1 | 23311224582 | $9.59 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X100 | 5 | 07119912570 | $1.78 | Shop at ECS Tuning | ||||
| 16 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Backup light switch | M12X1,5 | 1 | 23141354071 | $16.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
