Getrag 245/10/11 housing+attaching parts for BMW 3 Series E21 323i (1982)

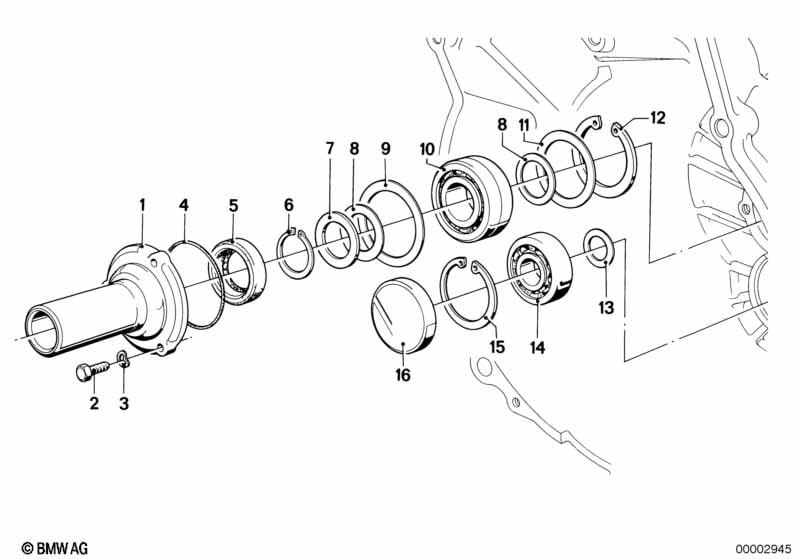

This Getrag 245/10/11 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing cover | 1 | 09/1980 | 23111224420 | $235.23 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X20-8.8-ZNS | 6 | 09/1980 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 03 | Spring washer Black | B6-ZN | 6 | 10/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 05 | Shaft seal | 30X42X7 | 1 | 09/1980 | 23111228314 | $36.00 | Shop at ECS Tuning | |||
| 06 | Snap ring | 30X2 | 1 | 09/1980 | 23221209435 | $4.08 | Shop at ECS Tuning | |||
| 07 | Support | 30X42X2,5 | X | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 07 | Support | 30X42X2,4 | X | 23121630151 | $3.13 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,6 | X | 23211207172 | $2.90 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,65 | X | 23221224470 | $5.90 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,55 | X | 23221224469 | $4.24 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,45 | X | 23221224468 | $4.24 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,35 | X | 23221224467 | $4.67 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,3 | X | 23121630152 | $3.13 | Shop at ECS Tuning | ||||
| 08 | Shim | 30X42X0,3 | X | 23121630161 | $2.21 | Shop at ECS Tuning | ||||
| 08 | Shim | 30X42X0,5 | X | 23121630162 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 08 | Shim | 30X42X0,4 | X | 23211204588 | $1.39 | Shop at ECS Tuning | ||||
| 09 | Shim | 52X65X0,3 | X | 09/1980 | 23121209417 | $3.98 | ENDED | Shop at ECS Tuning | ||
| 09 | Shim | 52X65X0,4 | X | 09/1980 | 23121209418 | $2.25 | ENDED | Shop at ECS Tuning | ||
| 09 | Shim | 52X65X0,5 | X | 09/1980 | 23121209419 | $1.82 | Shop at ECS Tuning | |||
| 10 | Ball bearing | 62X30X23,8 | 1 | 09/1980 | 23121220007 | $100.92 | Shop at ECS Tuning | |||
| 11 | Spacer | 64,4X61,6X2 | 1 | 09/1980 | 23121220008 | $2.36 | ENDED | Shop at ECS Tuning | ||
| 13 | Shim | 20X28X0,5 | X | 23111204583 | $2.75 | ENDED | Shop at ECS Tuning | |||
| 13 | Shim | 20X28X0,4 | X | 23111204584 | $0.66 | Shop at ECS Tuning | ||||
| 13 | Shim | 20X28X0,3 | X | 23121606151 | $0.42 | Shop at ECS Tuning | ||||
| 14 | Grooved ball bearing | 6304 C3 | 1 | 09/1980 | 23121231495 | $27.14 | Shop at ECS Tuning | |||
| 15 | Lock Ring | 52X2 | 1 | 07119934723 | $0.97 | Shop at ECS Tuning | ||||
| 16 | Sealing Cover | 1 | 23111606108 | $4.76 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
