Getrag 245/10/11 bottom hous.+att.parts for BMW 3 Series E21 320i (1978)

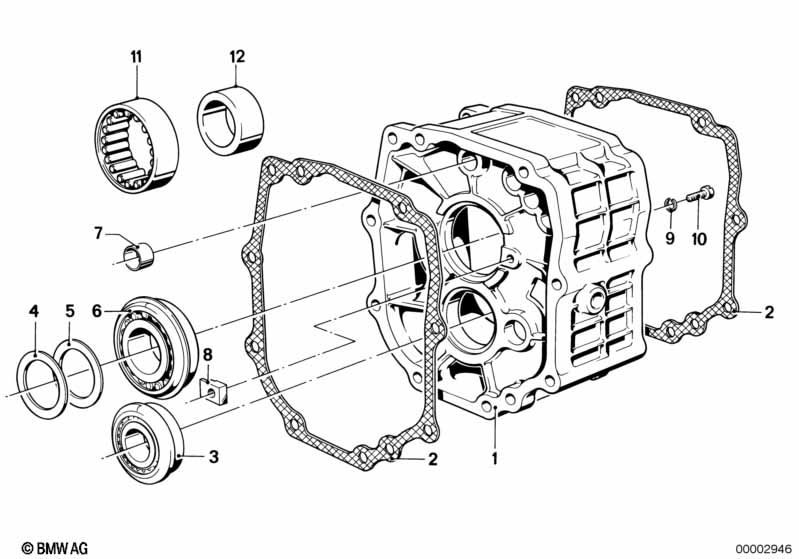

This Getrag 245/10/11 bottom hous.+att.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intermediate housing | 1 | 09/1980 | 23111205765 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 2 | 09/1980 | 23121222356 | $9.25 | Shop at ECS Tuning | ||||
| 04 | Shim | 1 | 09/1980 | 23211205777 | $2.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Shim | 30X42X0,3 | X | 09/1980 | 23121630161 | $2.21 | Shop at ECS Tuning | |||
| 05 | Shim | 30X42X0,5 | X | 09/1980 | 23121630162 | $0.70 | ENDED | Shop at ECS Tuning | ||
| 05 | Shim | 30X42X0,4 | X | 09/1980 | 23211204588 | $1.39 | Shop at ECS Tuning | |||
| 06 | Roller bearing | 62X30X16 | 1 | 09/1980 | 23121207402 | $133.01 | Shop at ECS Tuning | |||
| 07 | Bushing | 4 | 23117510946 | $11.25 | Shop at ECS Tuning | |||||
| 08 | Insert | 2 | 09/1980 | 23111200726 | $65.84 | ENDED | Shop at ECS Tuning | |||
| 09 | Spring washer | 6-ZN | 2 | 09/1980 | 07119933231 | $0.09 | Shop at ECS Tuning | |||
| 10 | Fillister-head screw | M6X12 | 2 | 09/1980 | 07119920069 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Getrag 245/10/11 bottom hous.+att.parts?
- This technical diagram illustrates the Getrag 245/10/11 bottom hous.+att.parts within the Manual Transmission group for the 3 Series E21 320i produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Intermediate housing (Part #23111205765).
- Which models use the hardware listed in this Getrag 245/10/11 bottom hous.+att.parts?
- The hardware and components featured in the Getrag 245/10/11 bottom hous.+att.parts are specific to the 3 Series E21 320i produced during 1978. These technical specifications ensure that parts like the Intermediate housing (23111205765) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 245/10/11 bottom hous.+att.parts assembly?
- Each item in the Getrag 245/10/11 bottom hous.+att.parts corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Intermediate housing by locating its position on the schematic, which then links to the official BMW part number 23111205765 for the Manual Transmission section.
