Getrag 265/6 gear wh.set parts/R.bearing for BMW 5 Series E28 535i (1987)

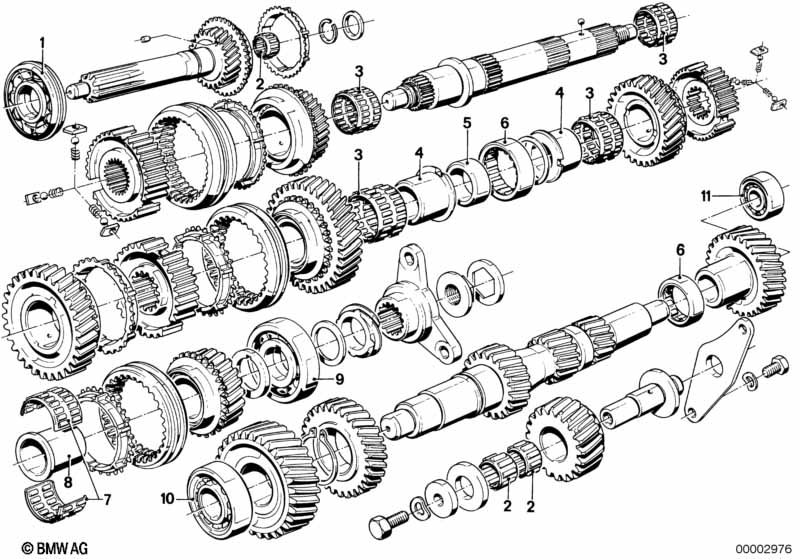

This Getrag 265/6 gear wh.set parts/R.bearing technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ball bearing | 80X35X21 | 1 | 23121209323 | $102.36 | Shop at ECS Tuning | ||||
| 02 | Needle cage | 35X23X16 | 3 | 23221207784 | $18.62 | Shop at ECS Tuning | ||||
| 03 | Needle cage | 4 | 23221228279 | $43.20 | Shop at ECS Tuning | |||||
| 04 | Spacer bush | 2 | 23211209333 | ENDED | Shop at ECS Tuning | |||||
| 05 | Ring | 1 | 23211209335 | $20.49 | ENDED | Shop at ECS Tuning | ||||
| 06 | Roller bearing | 62X44X17 | 2 | 23211209327 | $54.75 | Shop at ECS Tuning | ||||
| 07 | Needle cage | 40X35X32 | 1 | 23221209330 | $41.40 | Shop at ECS Tuning | ||||
| 08 | Spacer bush | 1 | 23211209336 | $52.90 | ENDED | Shop at ECS Tuning | ||||
| 09 | Ball bearing | 72X30X19 | 1 | 23121209338 | $74.39 | Shop at ECS Tuning | ||||
| 10 | Cylindrical roller bearing,radial | 52X20X21 | 1 | 23121209328 | $78.76 | Shop at ECS Tuning | ||||
| 11 | Grooved ball bearing | 25X62X17 | 1 | 07119981432 | $26.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
