Getrag 265/6 inner gear shifting parts for BMW 5 Series E28 525i (1987)

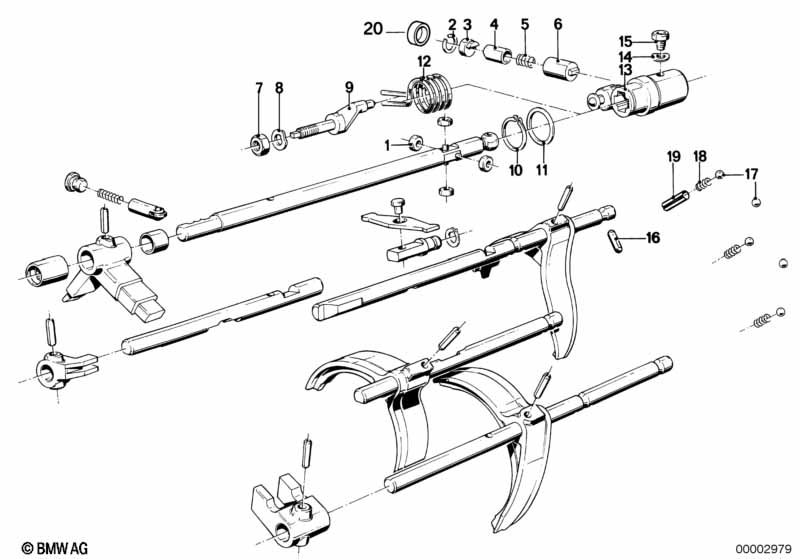

This Getrag 265/6 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roll pin | 4 | 23317539086 | $10.41 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lock Ring | 16X1 | 1 | 07119934619 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Stopper | 1 | 23121209346 | $13.39 | Shop at ECS Tuning | |||||
| 04 | Locking pin | 1 | 23121209345 | $14.73 | Shop at ECS Tuning | |||||
| 05 | Compression spring | 1,7MM | 1 | 23311224029 | ENDED | Shop at ECS Tuning | ||||
| 06 | Locking pin | 1 | 23121209344 | $20.20 | ENDED | Shop at ECS Tuning | ||||
| 06 | Locking pin | 1 | 23121209345 | $14.73 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 09 | Pin | 1 | 23121209351 | $45.32 | ENDED | Shop at ECS Tuning | ||||
| 10 | Lock Ring | 1 | 23311202768 | $2.30 | ENDED | Shop at ECS Tuning | ||||
| 11 | Shim | 32X26X1,0 | 1 | 23311202769 | $1.61 | ENDED | Shop at ECS Tuning | |||
| 12 | Retainer spring | D=3,3MM | 1 | 23311209348 | $14.98 | ENDED | Shop at ECS Tuning | |||
| 13 | Selector cam | 1 | 23311224064 | ENDED | Shop at ECS Tuning | |||||
| 13 | Selector cam | 1 | 23311224064 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Driving dog for 1st and 2nd gear | 1 | 23311224065 | $97.93 | ENDED | Shop at ECS Tuning | ||||
| -- | Shift | 1 | 23311224066 | $142.85 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Fillister-head screw | M8X12 | 1 | 07119919724 | $5.24 | ENDED | Shop at ECS Tuning | |||
| 16 | Pin | 8MM | 1 | 23121209343 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 17 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 18 | Compression spring | D=1,0MM | 3 | 23311200811 | $3.85 | Shop at ECS Tuning | ||||
| 19 | Bush | 3 | 23311207056 | $1.11 | Shop at ECS Tuning | |||||
| 20 | Cover lid | 1 | 23121228200 | $5.64 | Shop at ECS Tuning | |||||
