Getrag 245/2/4 housing+attaching parts for BMW 5 Series E28 518i (1986)

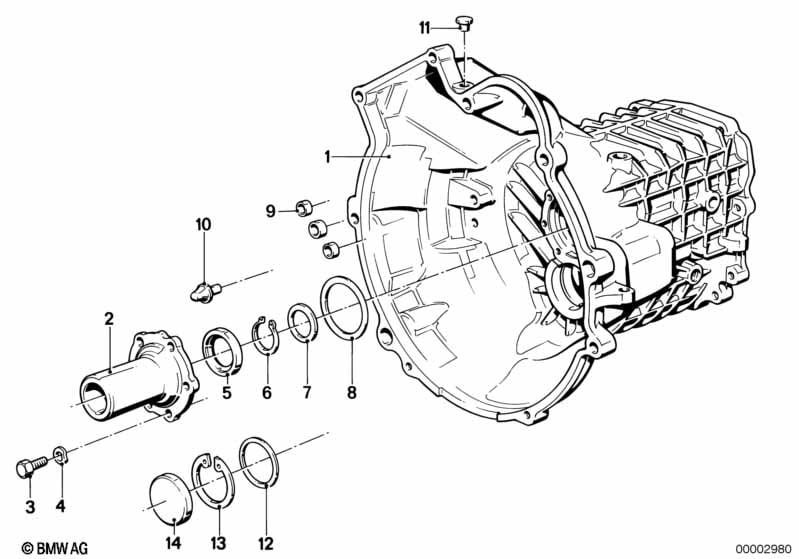

This Getrag 245/2/4 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sweden version |
=Yes |
|||||||||
| 01 | Transmission housing | 1 | 23111224002 | ENDED | Shop at ECS Tuning | |||||
| 02 | Housing cover | 1 | 23111224420 | $235.23 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X20-8.8-ZNS | 6 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 05 | Shaft seal | 30X42X7 | 1 | 23111228314 | $36.00 | Shop at ECS Tuning | ||||
| 06 | Snap ring | 30X2 | 1 | 23221209435 | $4.08 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,5 | 1 | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 07 | Support | 30X42X2,4 | 1 | 23121630151 | $3.13 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,65 | 1 | 23221224470 | $5.90 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,55 | 1 | 23221224469 | $4.24 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,45 | 1 | 23221224468 | $4.24 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,35 | 1 | 23221224467 | $4.67 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,3 | 1 | 23121630152 | $3.13 | Shop at ECS Tuning | ||||
| 07 | Support | 30X42X2,6 | 1 | 23211207172 | $2.90 | Shop at ECS Tuning | ||||
| 08 | Shim | 52X65X0,3 | 1 | 23121209417 | $3.98 | ENDED | Shop at ECS Tuning | |||
| 08 | Shim | 52X65X0,4 | 1 | 23121209418 | $2.25 | ENDED | Shop at ECS Tuning | |||
| 08 | Shim | 52X65X0,5 | 1 | 23121209419 | $1.82 | Shop at ECS Tuning | ||||
| 09 | Cover lid | D=15MM | 3 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Cover lid | D=17MM | 1 | 07119937248 | $0.44 | Shop at ECS Tuning | ||||
| 10 | Ball pin | H=15MM | 1 | 21511202659 | $1.37 | Shop at ECS Tuning | ||||
| 11 | Blind plug | 1 | 23111200477 | ENDED | Shop at ECS Tuning | |||||
| 12 | Shim | 42X52X0,3 | 1 | 23121209424 | $1.15 | Shop at ECS Tuning | ||||
| 12 | Shim | 42X52X0,5 | 1 | 23121209425 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 12 | Shim | 42X52X1,0 | 1 | 23121209426 | $1.58 | Shop at ECS Tuning | ||||
| 12 | Shim | 42X52X1,1 | 1 | 23121209427 | $3.80 | ENDED | Shop at ECS Tuning | |||
| 12 | Shim | 42X52X1,2 | 1 | 23121209428 | $2.27 | ENDED | Shop at ECS Tuning | |||
| 12 | Shim | 42X52X2,2 | 1 | 23121209429 | $4.57 | ENDED | Shop at ECS Tuning | |||
| 13 | Lock Ring | 52X2 | 1 | 07119934723 | $0.97 | Shop at ECS Tuning | ||||
| 14 | Sealing Cover | 1 | 23111606108 | $4.76 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 518i Getrag 245/2/4 housing+attaching parts?
- This technical diagram illustrates the Getrag 245/2/4 housing+attaching parts within the Manual Transmission group for the 5 Series E28 518i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Transmission housing (Part #23111224002).
- Which models use the hardware listed in this Getrag 245/2/4 housing+attaching parts?
- The hardware and components featured in the Getrag 245/2/4 housing+attaching parts are specific to the 5 Series E28 518i produced during 1986. These technical specifications ensure that parts like the Transmission housing (23111224002) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 245/2/4 housing+attaching parts assembly?
- Each item in the Getrag 245/2/4 housing+attaching parts corresponds to the numbered list below the illustration. For the 5 Series E28 518i, you can identify the Transmission housing by locating its position on the schematic, which then links to the official BMW part number 23111224002 for the Manual Transmission section.
