Getrag 245/2/4 inner gear shifting parts for BMW 5 Series E12 520 (1981)

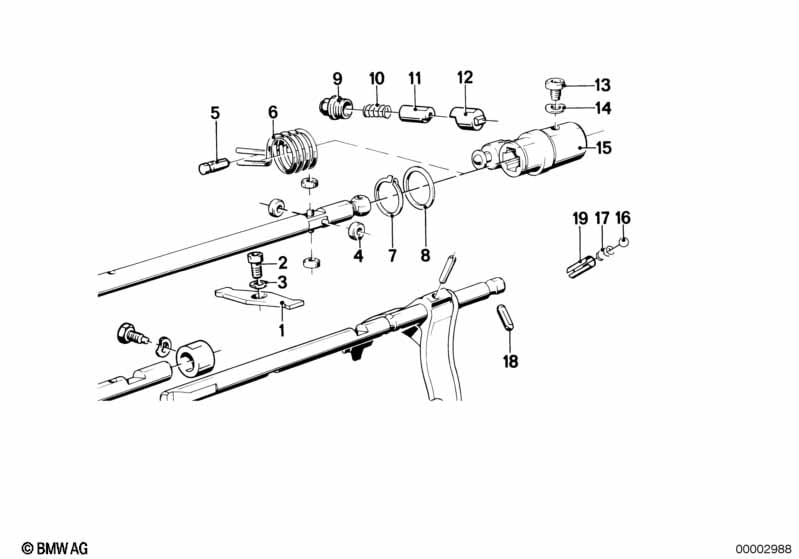

This Getrag 245/2/4 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lever | 1 | 23311209467 | $33.76 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M10X30 | 1 | 07119919763 | ENDED | Shop at ECS Tuning | ||||
| 03 | Circlip | S10 | 1 | 23221209468 | $0.36 | ENDED | Shop at ECS Tuning | |||
| 04 | Roll pin | 4 | 23317539086 | $10.41 | ENDED | Shop at ECS Tuning | ||||
| 05 | Dowel pin | 6X24 | 1 | 07119942526 | $1.93 | Shop at ECS Tuning | ||||
| 06 | Retainer spring | D=3,3MM | 1 | 23311209348 | $14.98 | ENDED | Shop at ECS Tuning | |||
| 07 | Lock Ring | 1 | 23311202768 | $2.30 | ENDED | Shop at ECS Tuning | ||||
| 08 | Shim | 32X26X1,0 | 1 | 23311202769 | $1.61 | ENDED | Shop at ECS Tuning | |||
| 09 | Screw plug | 1 | 23311209476 | $20.76 | ENDED | Shop at ECS Tuning | ||||
| 10 | Compression spring | D=1,6MM | 1 | 23311209479 | $1.69 | Shop at ECS Tuning | ||||
| 11 | Locking pin | 1 | 23311209477 | $13.57 | Shop at ECS Tuning | |||||
| 12 | Locking pin | 1 | 23311209478 | $14.98 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M8X12 | 1 | 07119919724 | $5.24 | ENDED | Shop at ECS Tuning | |||
| 14 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Selector cam | 1 | 23311209471 | $175.21 | ENDED | Shop at ECS Tuning | ||||
| 16 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 17 | Compression spring | D=1,0MM | 3 | 23311200811 | $3.85 | Shop at ECS Tuning | ||||
| 18 | Pin | 8MM | 1 | 23121209343 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 19 | Bush | 3 | 23311207056 | $1.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
