Getrag 245/2/4 inner gear shifting parts for BMW 5 Series E12 520 (1981)

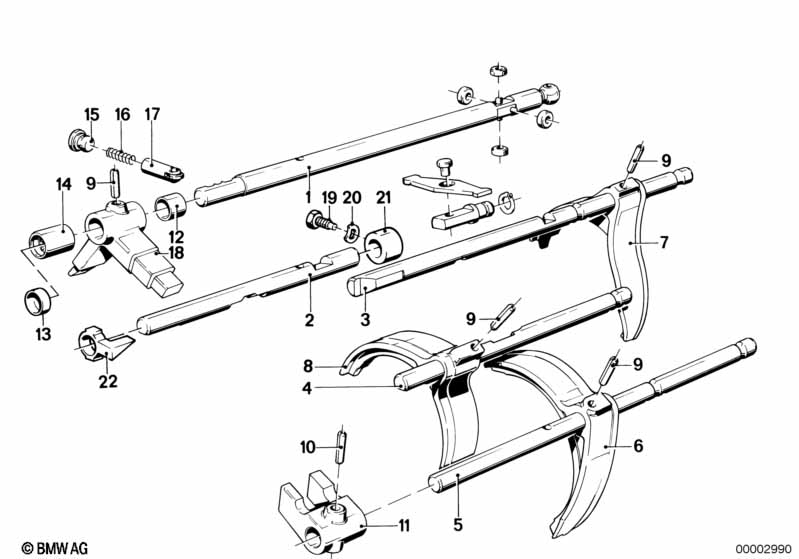

This Getrag 245/2/4 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector shaft | 1 | 23311209475 | $39.46 | ENDED | Shop at ECS Tuning | ||||
| 02 | Selector shaft | 1 | 23311208516 | $24.83 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shifting rod 5st and reverse gear | 1 | 23311208515 | $35.71 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shifting rod 3.and 4.gear | 1 | 23311208514 | $23.44 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shifting rod 1.and 2.gear | 1 | 23311208513 | $28.74 | Shop at ECS Tuning | |||||
| 06 | Shifting fork 1st and 2nd gear | 1 | 23311208508 | $127.22 | ENDED | Shop at ECS Tuning | ||||
| 07 | Shifting fork 5st and reverse gear | 1 | 23311208511 | ENDED | Shop at ECS Tuning | |||||
| 08 | Shifting fork 1st to 4th gear | 1 | 23311205227 | $26.19 | ENDED | Shop at ECS Tuning | ||||
| 09 | Roll pin | 6X28 | 3 | 07119941381 | $1.22 | Shop at ECS Tuning | ||||
| 10 | Spiral tension pin | 6X24 | 2 | 23221203745 | $0.52 | Shop at ECS Tuning | ||||
| 11 | Driving dog for 1st and 2nd gear | 1 | 23311209465 | ENDED | Shop at ECS Tuning | |||||
| 11 | Driving dog for 1st and 2nd gear | 1 | 23311224062 | $102.39 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Selector cam | 1 | 23311224061 | Shop at ECS Tuning | ||||||
| -- | Shift | 1 | 23311224063 | ENDED | Shop at ECS Tuning | |||||
| 12 | Bushing | 5 | 23117510946 | $11.25 | Shop at ECS Tuning | |||||
| 13 | Cap | 1 | 23111206949 | $5.73 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bearing ball cage | 21X15X22 | 1 | 23111206948 | Shop at ECS Tuning | |||||
| 14 | Bearing ball cage | 21X15X22 | 1 | 23111228404 | ENDED | Shop at ECS Tuning | ||||
| 15 | Blind plug | 1 | 23317545771 | $6.03 | Shop at ECS Tuning | |||||
| 16 | Compression spring | D=1,1MM | 1 | 23311207403 | $1.61 | Shop at ECS Tuning | ||||
| 17 | Locking pin | 1 | 23311205113 | $25.45 | Shop at ECS Tuning | |||||
| 18 | Shift | 1 | 23311209466 | ENDED | Shop at ECS Tuning | |||||
| 18 | Shift | 1 | 23311224063 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Selector cam | 1 | 23311224061 | Shop at ECS Tuning | ||||||
| -- | Driving dog for 1st and 2nd gear | 1 | 23311224062 | $102.39 | ENDED | Shop at ECS Tuning | ||||
| 19 | Clamping bolt | M8X25 | 1 | 07119911221 | ENDED | Shop at ECS Tuning | ||||
| 20 | Circlip | 1 | 23221224235 | ENDED | Shop at ECS Tuning | |||||
| 21 | Supporting ring | 1 | 23221209469 | $12.05 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Getrag 245/2/4 inner gear shifting parts?
- This technical diagram illustrates the Getrag 245/2/4 inner gear shifting parts within the Manual Transmission group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Selector shaft (Part #23311209475).
- Which models use the hardware listed in this Getrag 245/2/4 inner gear shifting parts?
- The hardware and components featured in the Getrag 245/2/4 inner gear shifting parts are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Selector shaft (23311209475) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 245/2/4 inner gear shifting parts assembly?
- Each item in the Getrag 245/2/4 inner gear shifting parts corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Selector shaft by locating its position on the schematic, which then links to the official BMW part number 23311209475 for the Manual Transmission section.
