Getrag 265/6 gear wh.set parts/Rep.kits for BMW 5 Series E28 M535i (1987)

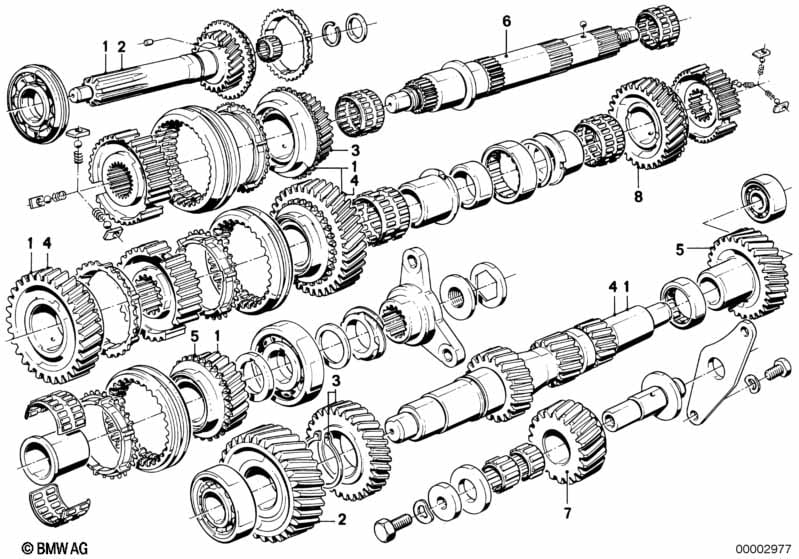

This Getrag 265/6 gear wh.set parts/Rep.kits technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gear set | 1 | 23221224220 | $3175.02 | ENDED | Shop at ECS Tuning | ||||
| 01 | Gear set | 1 | 23221224429 | $2181.78 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Output shaft | 1 | 23211224372 | $493.27 | Shop at ECS Tuning | |||||
| 02 | Repair kit gear wheels 4th gear | 1 | 23221224032 | $693.29 | Shop at ECS Tuning | |||||
| 03 | Repair kit gear wheels 3rd gear | 1 | 23221224221 | $413.92 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Output shaft | 1 | 23211224372 | $493.27 | Shop at ECS Tuning | |||||
| 04 | Repair kit gear wheels 1st A.2nd gear | 1 | 23221224222 | ENDED | Shop at ECS Tuning | |||||
| 04 | Repair kit gear wheels 1st A.2nd gear | 1 | 23221224392 | $1188.54 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Output shaft | 1 | 23211224372 | $493.27 | Shop at ECS Tuning | |||||
| 05 | Repair kit gear wheels 5th gear | 1 | 23221224035 | $1015.56 | ENDED | Shop at ECS Tuning | ||||
| 06 | Output shaft | 1 | 23211224372 | $493.27 | Shop at ECS Tuning | |||||
| 07 | Reverse gear | 1 | 23211282402 | $239.94 | ENDED | Shop at ECS Tuning | ||||
| 08 | Reverse shift gear | 1 | 09/1982 | 23221224268 | $686.34 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
