4-gear transmission for BMW 1502-2002tii 1802 (1975)

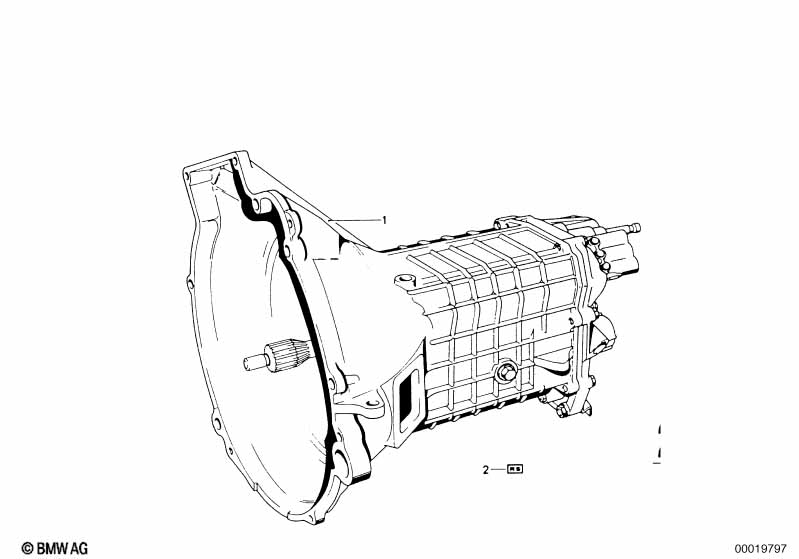

This 4-gear transmission technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Getrag 232, Getrag 242 | |||||||||
| 01 | Exch. 4 speed gearbox | 242/6.10 | 1 | 03/1966 | 07/1977 | 23001202212 | $4140.36 | ENDED | Shop at ECS Tuning | |
| 02 | Gasket set f four speed gearbox "AF" | 1 | 03/1966 | 07/1977 | 23009065645 | $88.64 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1802 4-gear transmission?
- This technical diagram illustrates the 4-gear transmission within the Manual Transmission group for the 1502-2002tii 1802 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Exch. 4 speed gearbox (Part #23001202212).
- Which models use the hardware listed in this 4-gear transmission?
- The hardware and components featured in the 4-gear transmission are specific to the 1502-2002tii 1802 produced during 1975. These technical specifications ensure that parts like the Exch. 4 speed gearbox (23001202212) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 4-gear transmission assembly?
- Each item in the 4-gear transmission corresponds to the numbered list below the illustration. For the 1502-2002tii 1802, you can identify the Exch. 4 speed gearbox by locating its position on the schematic, which then links to the official BMW part number 23001202212 for the Manual Transmission section.
