Getrag 242 housing+attaching parts for BMW 1502-2002tii 1602 (1975)

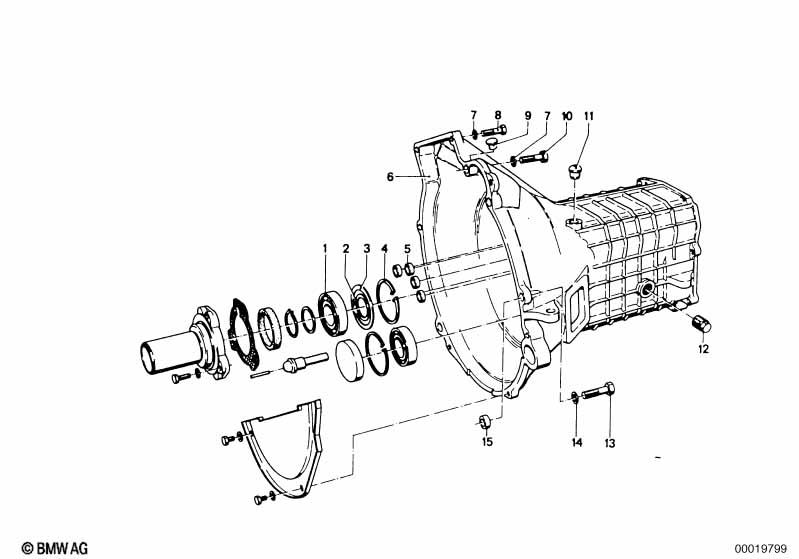

This Getrag 242 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grooved ball bearing | 62X30X16 | 1 | 09/1963 | 07/1977 | 23121204198 | $16.12 | Shop at ECS Tuning | ||
| 02 | Washer | PS 30X42X0,3 | X | 23121630160 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 30X42X0,3 | X | 23121630161 | $2.21 | Shop at ECS Tuning | ||||
| 02 | Shim | 30X42X0,5 | X | 23121630162 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 02 | Shim | 30X42X0,4 | X | 23211204588 | $1.39 | Shop at ECS Tuning | ||||
| 03 | Shim | 50X62X0,3 | X | 23121200409 | $1.82 | Shop at ECS Tuning | ||||
| 03 | Shim | 50X62X0,4 | X | 23121204575 | $2.05 | Shop at ECS Tuning | ||||
| 03 | Shim | 50X62X0,5 | X | 23121204576 | $2.30 | Shop at ECS Tuning | ||||
| 03 | Shim | 50X62X1,0 | X | 23121606115 | $1.23 | Shop at ECS Tuning | ||||
| 04 | Lock Ring | 62X2 | 1 | 07119934735 | $1.80 | Shop at ECS Tuning | ||||
| 05 | Cover lid | D=15MM | 5 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Transmission housing | 1 | 09/1963 | 07/1977 | 23111490102 | ENDED | Shop at ECS Tuning | |||
| 07 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Blind plug | 1 | 23111200477 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Ventilation valve | 1 | 09/1963 | 07/1977 | 23111490184 | $3.66 | ENDED | Shop at ECS Tuning | ||
| 12 | Screw plug | M24X1,5 | 1 | 27111226798 | $5.61 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M10X50 | 1 | 07119913859 | $0.89 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 15 | Dowel | D=14,5/12,6MM | 2 | 23111606156 | $2.18 | Shop at ECS Tuning |
