Getrag 242 housing+attaching parts for BMW 1502-2002tii 2002 (1973)

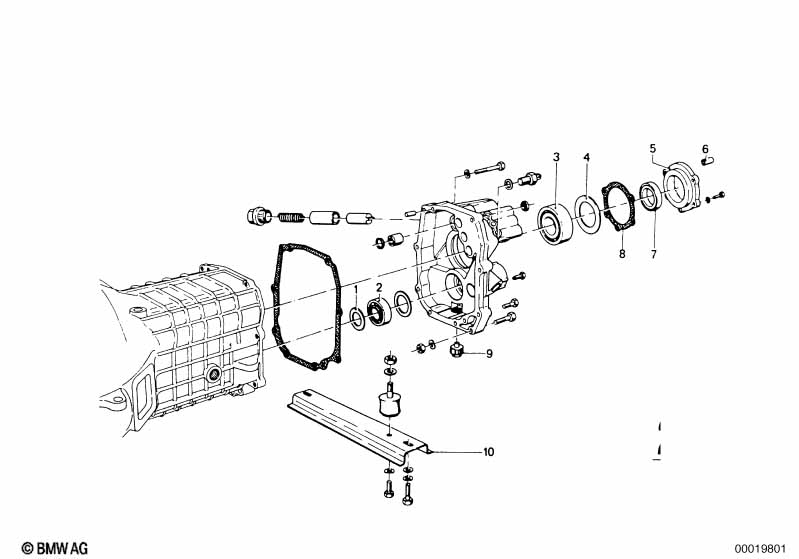

This Getrag 242 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shim | 20X28X0,5 | X | 23111204583 | $2.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Shim | 20X28X0,4 | X | 23111204584 | $0.66 | Shop at ECS Tuning | ||||
| 01 | Shim | 20X28X2 | 1 | 23121490181 | $1.71 | Shop at ECS Tuning | ||||
| 01 | Shim | 20X28X0,3 | X | 23121606151 | $0.42 | Shop at ECS Tuning | ||||
| 02 | Cylindrical roller bearing,radial | 20X52X15 | 1 | 07119985720 | $35.21 | Shop at ECS Tuning | ||||
| 03 | Ball bearing | 72X30X19 | 1 | 09/1963 | 07/1977 | 23129981441 | Shop at ECS Tuning | |||
| 04 | Shim | 56X72X0,3 | X | 23121200438 | $2.82 | Shop at ECS Tuning | ||||
| 04 | Shim | 56X72X0,4 | X | 23121205767 | $1.39 | Shop at ECS Tuning | ||||
| 04 | Shim | 56X72X0,5 | X | 23121205768 | $4.79 | Shop at ECS Tuning | ||||
| 05 | backup ring | 1 | 23111203721 | $60.61 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bushing | 1 | 23117510946 | $11.25 | Shop at ECS Tuning | |||||
| 07 | Shaft seal | 38X55X10 | 1 | 08/1974 | 23121204210 | Shop at ECS Tuning | ||||
| 07 | Shaft seal | 40X55X8 | 1 | 23121205342 | Shop at ECS Tuning | |||||
| 08 | Gasket Asbestos Free | 1 | 23121222355 | $4.27 | Shop at ECS Tuning | |||||
| 09 | Screw plug | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
| 10 | Cross member | 1 | 23711490100 | $50.61 | Shop at ECS Tuning |
