Getrag 242 gear wheel set parts/Rep.kits for BMW 1500-2000CS 2000C (1968)

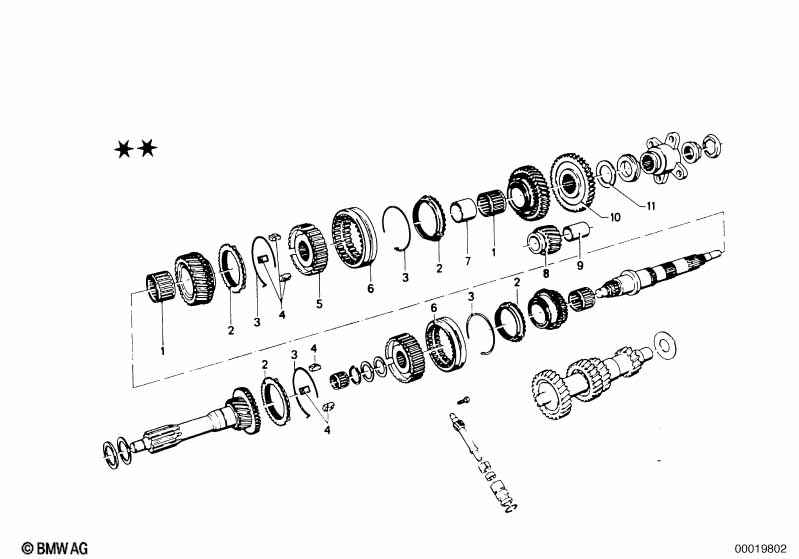

This Getrag 242 gear wheel set parts/Rep.kits technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Needle cage | 42X37X27,5 | 2 | 23221204605 | Shop at ECS Tuning | |||||
| 02 | Synchronizer ring | 4 | 09/1963 | 07/1977 | 23231209433 | $77.35 | Shop at ECS Tuning | |||
| 03 | Synchroniser spring | 4 | 23231203902 | $3.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | Insert | 6 | 23231202222 | $3.79 | Shop at ECS Tuning | |||||
| 05 | Guide sleeve 1st and 2nd gear | 1 | 23231224056 | $224.35 | ENDED | Shop at ECS Tuning | ||||
| 06 | Guide sleeve assembly | 2 | 23231209441 | $387.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bush | 1 | 23211490109 | ENDED | Shop at ECS Tuning | |||||
| 08 | Reverse gear with bush | 1 | 23221205213 | $256.68 | Shop at ECS Tuning | |||||
| 09 | Bush | 1 | 23221205216 | $8.59 | Shop at ECS Tuning | |||||
| 10 | Reverse gear wheel | 1 | 23221202228 | $202.00 | Shop at ECS Tuning | |||||
| 11 | Shim | 33,1X42X2,10 | 1 | 23221630215 | $4.83 | Shop at ECS Tuning | ||||
| 11 | Shim | 33,1X42X2,15 | 1 | 23221630216 | $5.17 | Shop at ECS Tuning | ||||
| 11 | Shim | 33,1X42X2,20 | 1 | 23221630217 | $5.17 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 33,1X42X2,25 | 1 | 23221630218 | $4.97 | Shop at ECS Tuning | ||||
| 11 | Shim | 33,1X42X2,30 | 1 | 23221630219 | $5.17 | Shop at ECS Tuning | ||||
| 11 | Shim | 33,1X42X2,35 | 1 | 23221630220 | $5.17 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 33,1X42X2,40 | 1 | 23221630221 | $5.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
