Getrag 242 inner gear shifting parts for BMW 1500-2000CS 1800 (1971)

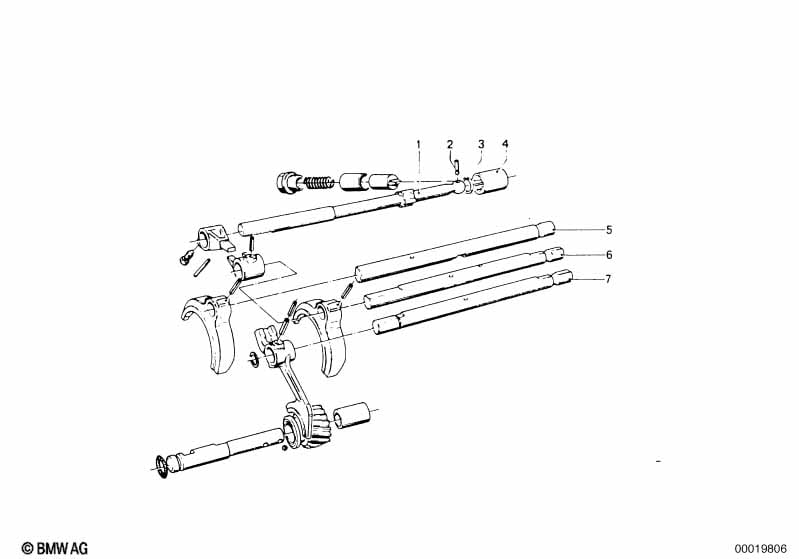

This Getrag 242 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector shaft | 1 | 23311205129 | $135.49 | ENDED | Shop at ECS Tuning | ||||
| 02 | Dowel pin | 2 | 23411466134 | $0.70 | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 1 | 23311490185 | $0.43 | Shop at ECS Tuning | |||||
| 04 | Splined sleeve | 1 | 23111205190 | $64.84 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shifting rod 3.and 4.gear | 1 | 23311202231 | ENDED | Shop at ECS Tuning | |||||
| 06 | Shifting rod 1.and 2.gear | 1 | 23311202230 | ENDED | Shop at ECS Tuning | |||||
| 07 | Selector rod | 1 | 23311490162 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Getrag 242 inner gear shifting parts?
- This technical diagram illustrates the Getrag 242 inner gear shifting parts within the Manual Transmission group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Selector shaft (Part #23311205129).
- Which models use the hardware listed in this Getrag 242 inner gear shifting parts?
- The hardware and components featured in the Getrag 242 inner gear shifting parts are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Selector shaft (23311205129) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 242 inner gear shifting parts assembly?
- Each item in the Getrag 242 inner gear shifting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Selector shaft by locating its position on the schematic, which then links to the official BMW part number 23311205129 for the Manual Transmission section.
