Shift lever for BMW 1502-2002tii 1802 (1973)

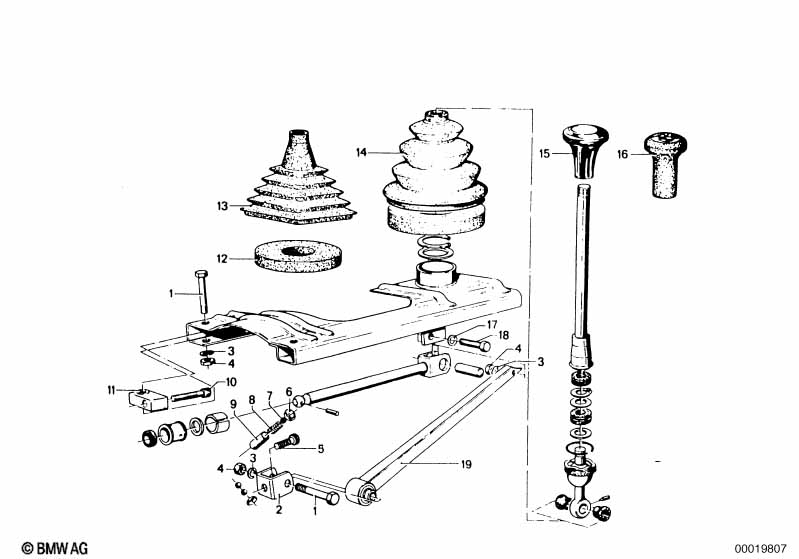

This Shift lever technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M8X35 | 3 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Supporting bracket | 1 | 23411466145 | $7.38 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | ISA screw | M8X16-8.8-ZNS3 | 1 | 07129903984 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Cover lid | D=12MM | 4 | 07119906393 | Shop at ECS Tuning | |||||
| 07 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 08 | Compression spring | D=1,3MM | 3 | 23111666227 | $1.83 | Shop at ECS Tuning | ||||
| 09 | Bush | 3 | 23311207056 | $1.11 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M10X35 | 2 | 07119919669 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Supporting bracket | 2 | 25111208580 | $20.64 | Shop at ECS Tuning | |||||
| 12 | Sound absorber | 1 | 23411200937 | $12.21 | Shop at ECS Tuning | |||||
| 13 | Rubber boot | 1 | 25111206289 | Shop at ECS Tuning | ||||||
| 14 | Rubber boot | 1 | 25111100582 | $25.79 | ENDED | Shop at ECS Tuning | ||||
| 15 | Gear shift knob | 5-GANG SPORT | 1 | 23411666170 | $127.63 | Shop at ECS Tuning | ||||
| 16 | Leather and plastic gear shift knob | BMW LOGO | 1 | 25111203074 | $41.29 | Shop at ECS Tuning | ||||
| 16 | Gear shift knob, wood | 1 | 25119056584 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Rod | 1 | 25111201238 | $34.59 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
