Shift lever for BMW 1500-2000CS 2000C (1968)

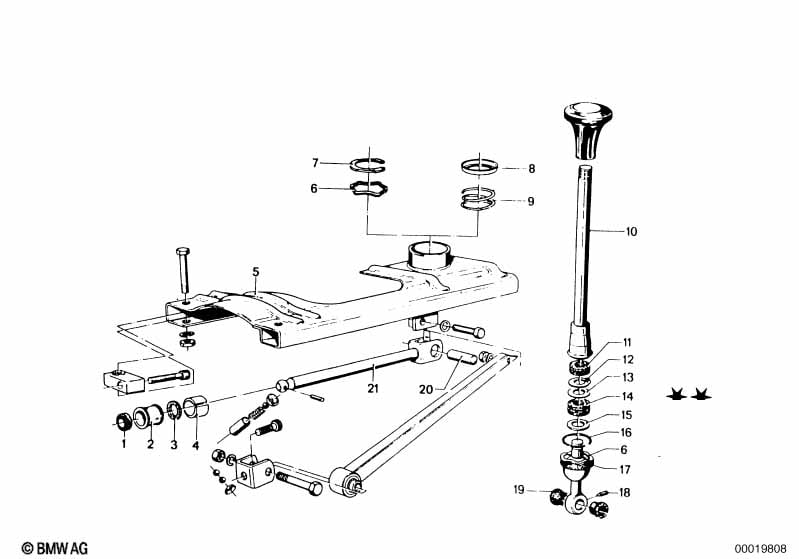

This Shift lever technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 15X21X5 | 1 | 02/1974 | 23128677736 | Shop at ECS Tuning | ||||
| 02 | Gearshift rod joint | 1 | 02/1974 | 23411466130 | $51.66 | ENDED | Shop at ECS Tuning | |||
| 03 | Plastic washer | 1 | 02/1974 | 25111434194 | $0.85 | Shop at ECS Tuning | ||||
| 04 | Tension bush | 1 | 02/1974 | 23411466132 | $12.47 | Shop at ECS Tuning | ||||
| 04 | Sleeve | 1 | 02/1974 | 25111203132 | $4.88 | ENDED | Shop at ECS Tuning | |||
| 05 | Shifting arm | 1 | 02/1974 | 25111203776 | ENDED | Shop at ECS Tuning | ||||
| 06 | Washer | X | 02/1974 | 23411466125 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Washer | X | 02/1974 | 23411466126 | $0.84 | Shop at ECS Tuning | ||||
| 06 | Washer | X | 02/1974 | 23411466127 | $0.80 | ENDED | Shop at ECS Tuning | |||
| 06 | Wave washer | 1 | 02/1974 | 25111466117 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Lock Ring | 1 | 02/1974 | 23411466112 | $0.68 | Shop at ECS Tuning | ||||
| 08 | Spacer sleeve | 1 | 02/1974 | 23411200844 | $2.27 | Shop at ECS Tuning | ||||
| 09 | Compression spring | 1 | 02/1974 | 23411200845 | $1.33 | Shop at ECS Tuning | ||||
| 10 | Shift lever | 1 | 02/1974 | 25111201562 | ENDED | Shop at ECS Tuning | ||||
| 11 | O-ring | 1 | 02/1974 | 23411666132 | $0.68 | Shop at ECS Tuning | ||||
| 12 | Circlip | 12,0 | 1 | 02/1974 | 07119932892 | ENDED | Shop at ECS Tuning | |||
| 13 | Washer | 1 | 02/1974 | 23411666166 | $0.68 | ENDED | Shop at ECS Tuning | |||
| 14 | Rubber Ring | 1 | 02/1974 | 23411666133 | $1.77 | Shop at ECS Tuning | ||||
| 15 | Washer | 14X25X2-ZNS3 | 1 | 02/1974 | 34301163613 | $0.83 | Shop at ECS Tuning | |||
| 16 | Spring washer | 1 | 02/1974 | 23411666122 | $1.75 | Shop at ECS Tuning | ||||
| 17 | Ball Cup upper | 2 | 02/1974 | 23411466110 | $8.01 | Shop at ECS Tuning | ||||
| 18 | Grub screw | 1 | 02/1974 | 23411201536 | $2.32 | ENDED | Shop at ECS Tuning | |||
| 18 | Grub screw | 1 | 02/1974 | 25111203551 | Shop at ECS Tuning | |||||
| 19 | Bush | 1 | 02/1974 | 23411466120 | $0.84 | Shop at ECS Tuning | ||||
| 20 | Dowel pin | 2 | 02/1974 | 23411466122 | $4.42 | Shop at ECS Tuning | ||||
| 21 | Selector rod | 1 | 23411466115 | ENDED | Shop at ECS Tuning | |||||
| 21 | Selector rod | 1 | 25111200601 | $29.85 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
