Getrag 235 housing+attaching parts for BMW 1502-2002tii 1802 (1975)
This Getrag 235 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dowel pin | 10X32 | 4 | 07119942304 | $0.92 | Shop at ECS Tuning | ||||
| 02 | Transmission cover | 1 | 23111200723 | $574.74 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bush | 3 | 23311207056 | $1.11 | Shop at ECS Tuning | |||||
| -- | Bush | 1 | 23121666269 | $11.19 | Shop at ECS Tuning | |||||
| -- | Bushing | 1 | 23117510946 | $11.25 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X130 | 8 | 07119912585 | $2.09 | Shop at ECS Tuning | ||||
| 05 | Switch, reversing light and idle gear | M12X1,5 | 1 | 23141352153 | $13.53 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Cover lid | D=12MM | 4 | 07119906393 | Shop at ECS Tuning | |||||
| 08 | Bushing | 1 | 23117510946 | $11.25 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M6X22-8.8-ZNS3 | 5 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Spring washer | B6 | 7 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 11 | backup ring | 1 | 23111203721 | $60.61 | ENDED | Shop at ECS Tuning | ||||
| 12 | Shaft seal | 38X55X10 | 1 | 23121204210 | Shop at ECS Tuning | |||||
| 13 | Gasket Asbestos Free | 1 | 23121222355 | $4.27 | Shop at ECS Tuning | |||||
| 14 | Shim | 56X72X0,3 | X | 23121200438 | $2.82 | Shop at ECS Tuning | ||||
| 15 | Ball bearing | 72X30X19 | 1 | 23129981441 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1802 Getrag 235 housing+attaching parts?

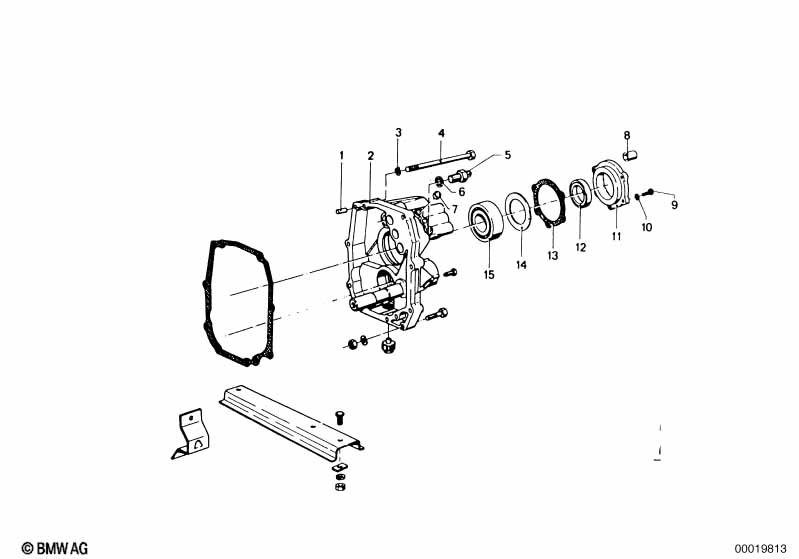

- This technical diagram illustrates the Getrag 235 housing+attaching parts within the Manual Transmission group for the 1502-2002tii 1802 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Dowel pin (Part #07119942304).
- Which models use the hardware listed in this Getrag 235 housing+attaching parts?
- The hardware and components featured in the Getrag 235 housing+attaching parts are specific to the 1502-2002tii 1802 produced during 1975. These technical specifications ensure that parts like the Dowel pin (07119942304) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 235 housing+attaching parts assembly?
- Each item in the Getrag 235 housing+attaching parts corresponds to the numbered list below the illustration. For the 1502-2002tii 1802, you can identify the Dowel pin by locating its position on the schematic, which then links to the official BMW part number 07119942304 for the Manual Transmission section.
