Getrag 235 gear wheel set parts/Rep.kits for BMW 1502-2002tii 1802 (1975)

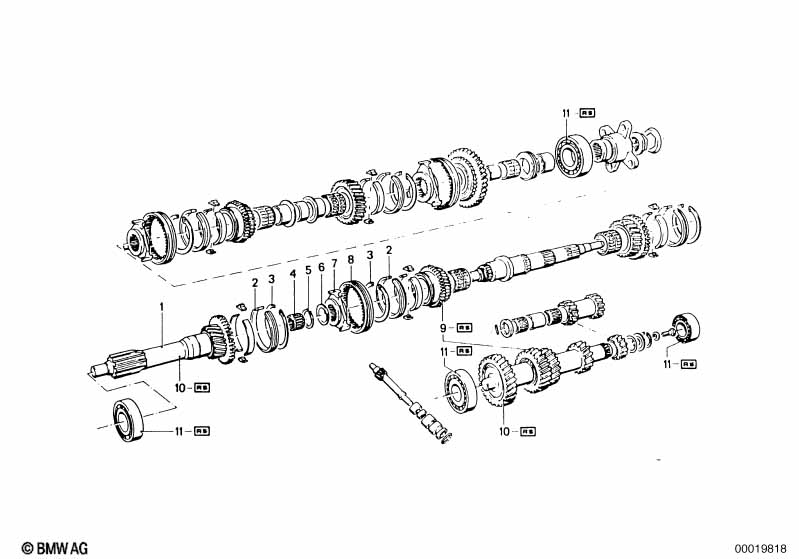

This Getrag 235 gear wheel set parts/Rep.kits technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive Shaft | 1 | 23211200734 | $377.41 | Shop at ECS Tuning | |||||
| 02 | Synchronizer ring | 2 | 23231200737 | $160.82 | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 2 | 23231200741 | $20.67 | Shop at ECS Tuning | |||||
| 04 | Needle cage | 26X20X17 | 1 | 23211204207 | $26.64 | Shop at ECS Tuning | ||||
| 05 | Snap ring | 1 | 23221630172 | $5.75 | Shop at ECS Tuning | |||||
| 07 | Guide sleeve 4th and 5th gear | 1 | 23231200749 | $177.29 | Shop at ECS Tuning | |||||
| 08 | Shift sleeve | 1 | 23221200753 | $181.41 | ENDED | Shop at ECS Tuning | ||||
| 09 | Repair kit gear wheels 4th gear | 1 | 23221201546 | $666.81 | ENDED | Shop at ECS Tuning | ||||
| 10 | Repair kit gear wheels 5th gear | 1 | 23221201547 | $555.29 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bearing repair kit | 1 | 23121205581 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
