Shift lever for BMW 1502-2002tii 2002 (1973)

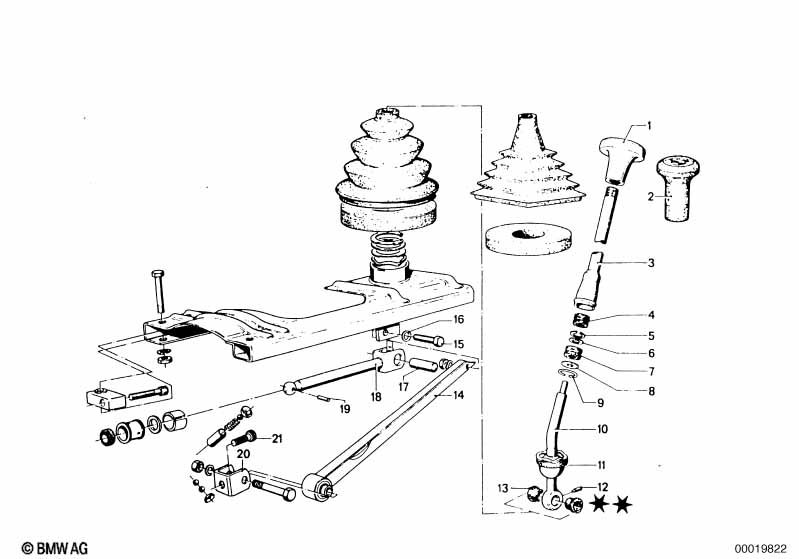

This Shift lever technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gear shift knob | 5-GANG SPORT | 1 | 02/1974 | 23411666170 | $127.63 | Shop at ECS Tuning | |||
| 02 | Leather and plastic gear shift knob | BMW LOGO | 1 | 02/1974 | 25111203074 | $41.29 | Shop at ECS Tuning | |||
| 03 | Holder | 1 | 02/1974 | 31311102579 | ENDED | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 02/1974 | 23411666132 | $0.68 | Shop at ECS Tuning | ||||
| 06 | Washer | 1 | 02/1974 | 23411666166 | $0.68 | ENDED | Shop at ECS Tuning | |||
| 07 | Rubber Ring | 1 | 02/1974 | 23411666133 | $1.77 | Shop at ECS Tuning | ||||
| 08 | Washer | 14X25X2-ZNS3 | 1 | 02/1974 | 34301163613 | $0.83 | Shop at ECS Tuning | |||
| 09 | Spring washer | 1 | 02/1974 | 23411666122 | $1.75 | Shop at ECS Tuning | ||||
| 10 | Shift lever-lower part | 1 | 02/1974 | 23411766109 | ENDED | Shop at ECS Tuning | ||||
| 11 | Ball Cup upper | 2 | 02/1974 | 23411466110 | $8.01 | Shop at ECS Tuning | ||||
| 12 | Grub screw | 1 | 02/1974 | 23411201536 | $2.32 | ENDED | Shop at ECS Tuning | |||
| 12 | Grub screw | 1 | 02/1974 | 25111203551 | Shop at ECS Tuning | |||||
| 13 | Bush | 2 | 02/1974 | 23411466120 | $0.84 | Shop at ECS Tuning | ||||
| 14 | Rod | 1 | 02/1974 | 23411766125 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X16-10.9-PHR | 1 | 02/1974 | 07119913612 | $0.62 | Shop at ECS Tuning | |||
| 16 | Washer | 8,4X16X1,6-ZNNV | 1 | 02/1974 | 07119907030 | Shop at ECS Tuning | ||||
| 17 | Dowel pin | 1 | 02/1974 | 23411466122 | $4.42 | Shop at ECS Tuning | ||||
| 18 | Selector rod | 1 | 02/1974 | 25111200818 | ENDED | Shop at ECS Tuning | ||||
| 19 | Dowel pin | 2 | 02/1974 | 23411466134 | $0.70 | Shop at ECS Tuning | ||||
| 20 | Supporting bracket | 1 | 02/1974 | 23411466145 | $7.38 | ENDED | Shop at ECS Tuning | |||
| 21 | ISA screw | M8X16-8.8-ZNS3 | 1 | 02/1974 | 07129903984 | $1.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
