ZF s5-16 housing+attaching parts for BMW 2500-3.3Li 2500 (1977)

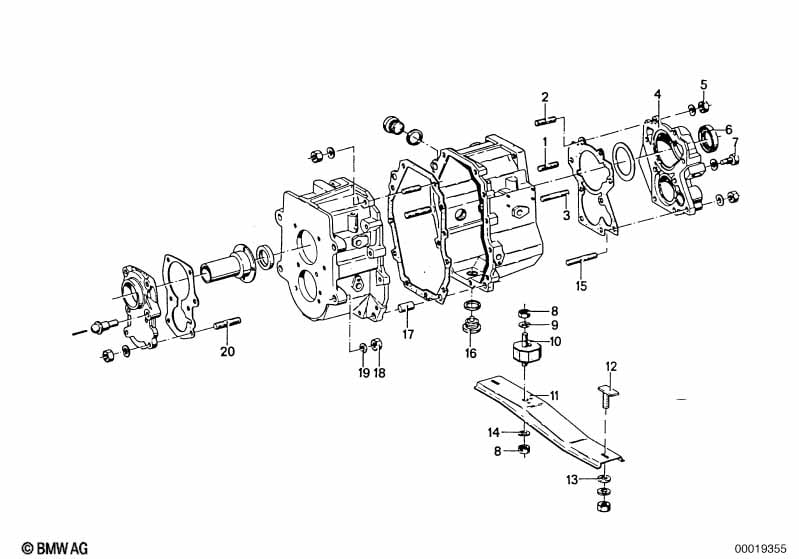

This ZF s5-16 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.

ZF s5-16 housing+attaching parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Stud bolt 2 23221201399 ENDED Shop at ECS Tuning
02 Stud bolt 2 23221201401 ENDED Shop at ECS Tuning
03 Stud bolt 1 23221201400 ENDED Shop at ECS Tuning
04 Cover 1 23111201389 $146.20 ENDED Shop at ECS Tuning
05 Hex nut M8-05-ZNNIV SI 2 07119904948 $1.00 Shop at ECS Tuning
06 Shaft seal 38X52X10 1 23121201390 $40.17 ENDED Shop at ECS Tuning
07 Hex bolt M8X20 1 23211207159 $2.75 Shop at ECS Tuning
08 Hex nut M10-8-ZNS 2 07119915558 $0.88 Shop at ECS Tuning
09 Washer 10,5X25X3,5MM 1 64521350824 $2.67 Shop at ECS Tuning
10 Rubber Mounting 1 23711102692 $32.09 Shop at ECS Tuning
11 Cross member 1 23711101810 $10.31 ENDED Shop at ECS Tuning
12 Square headed bolt M8X18 2 23711130250 $4.27 Shop at ECS Tuning
13 Washer A8,4X25 2 07147201571 $0.20 Shop at ECS Tuning
14 Wave washer B10-ZNS3 1 07119904463 Shop at ECS Tuning
15 Stud bolt 4 23221201402 ENDED Shop at ECS Tuning
16 Screw plug with O-ring M22X1,5-ZNS3 1 33117525064 $3.91 Shop at ECS Tuning
17 Dowel pin 12X24 2 07119942156 ENDED Shop at ECS Tuning
18 Hex nut M12 4 07119922139 $2.09 ENDED Shop at ECS Tuning
19 Washer 12-300 HV-ZNS3 4 07119904119 $0.25 Shop at ECS Tuning
20 Stud bolt 6 23221201288 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
