Getrag 262 housing+attaching parts for BMW 2.5CS-3.0CSL 3.0CSL (1973)

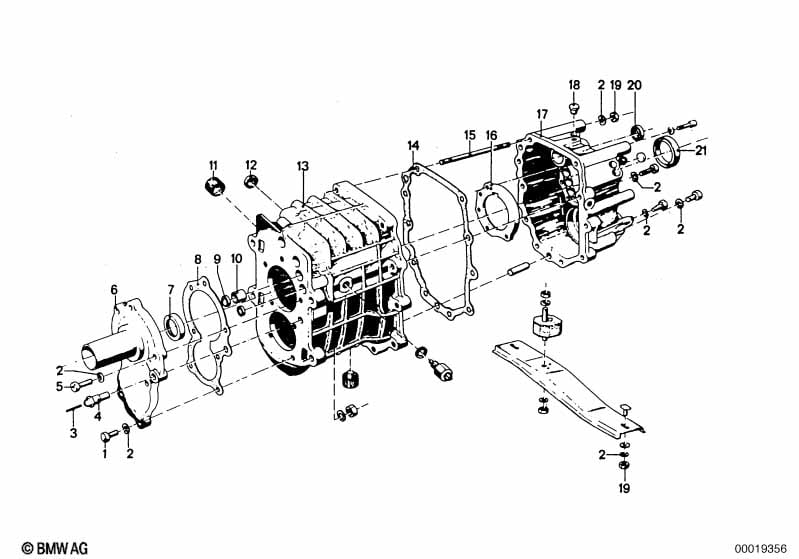

This Getrag 262 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M8X22-8.8-ZNS3 | 4 | 07119904040 | Shop at ECS Tuning | |||||
| 02 | Wave washer | 8,4X15-ZNS3 | 22 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Felt | 1 | 21511200214 | ENDED | Shop at ECS Tuning | |||||
| 04 | Ball pin | 1 | 21511200182 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X30-ZN | 3 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 06 | Housing cover | 1 | 23111228311 | $233.58 | Shop at ECS Tuning | |||||
| 07 | Shaft seal | 30X42X7 | 1 | 23111228314 | $36.00 | Shop at ECS Tuning | ||||
| 08 | Gasket Asbestos Free | 1 | 23121222357 | $13.93 | Shop at ECS Tuning | |||||
| 09 | Cover lid | D=17MM | 3 | 07119937248 | $0.44 | Shop at ECS Tuning | ||||
| 10 | Bushing | 3 | 08/1968 | 02/1977 | 23117510946 | $11.25 | Shop at ECS Tuning | |||
| 11 | Screw plug | M24X1,5 | 1 | 27111226798 | $5.61 | Shop at ECS Tuning | ||||
| 12 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 13 | Transmission housing | 1 | 23111207776 | $425.20 | ENDED | Shop at ECS Tuning | ||||
| 14 | Gasket Asbestos Free | 1 | 23121222359 | $17.82 | Shop at ECS Tuning | |||||
| 15 | Stud bolt | M8X130 | 2 | 07119908367 | ENDED | Shop at ECS Tuning | ||||
| 16 | backup ring | 1 | 23111205524 | $63.89 | ENDED | Shop at ECS Tuning | ||||
| 17 | Transmission cover | 1 | 23111207237 | $563.58 | ENDED | Shop at ECS Tuning | ||||
| 18 | Ventilation valve | 1 | 23111490184 | $3.66 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 20 | Shaft seal | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 21 | Shaft seal | 40X55X8 | 1 | 23121205342 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
