Getrag 262 housing+attaching parts for BMW 2.5CS-3.0CSL 3.0CSL (1973)

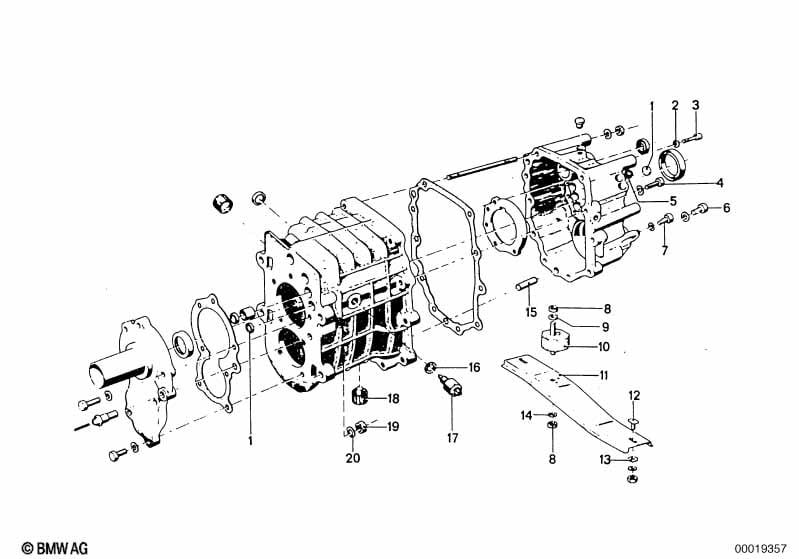

This Getrag 262 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover lid | D=15MM | 4 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 03 | Set fillister head 10 | M6X35 | 5 | 07509063199 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X35 | 7 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Cover lid | D=12MM | 3 | 07119906393 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Washer | 10,5X25X3,5MM | 1 | 64521350824 | $2.67 | Shop at ECS Tuning | ||||
| 10 | Rubber Mounting | 1 | 23711102692 | $32.09 | Shop at ECS Tuning | |||||
| 11 | Cross member | 1 | 23711101810 | $10.31 | ENDED | Shop at ECS Tuning | ||||
| 12 | Square headed bolt | M8X18 | 1 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 12 | Square headed bolt | M8X21 | 1 | 26111205004 | $1.54 | Shop at ECS Tuning | ||||
| 13 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 15 | Dowel pin | 10X32 | 2 | 07119942304 | $0.92 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A12.2X20X2-AL | 1 | 04/1971 | 11/1975 | 61311355262 | $0.80 | Shop at ECS Tuning | ||
| 17 | Backup light switch | M12X1,5 | 1 | 23141354071 | $16.78 | Shop at ECS Tuning | ||||
| 18 | Screw plug | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
| 19 | Hex nut | M12 | 4 | 07119922139 | $2.09 | ENDED | Shop at ECS Tuning | |||
| 20 | Washer | A13/HV-ZNS | 4 | 02/1977 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 20 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
