ZF s5-16 gear wheel set,single parts for BMW 2.5CS-3.0CSL 2.5CS

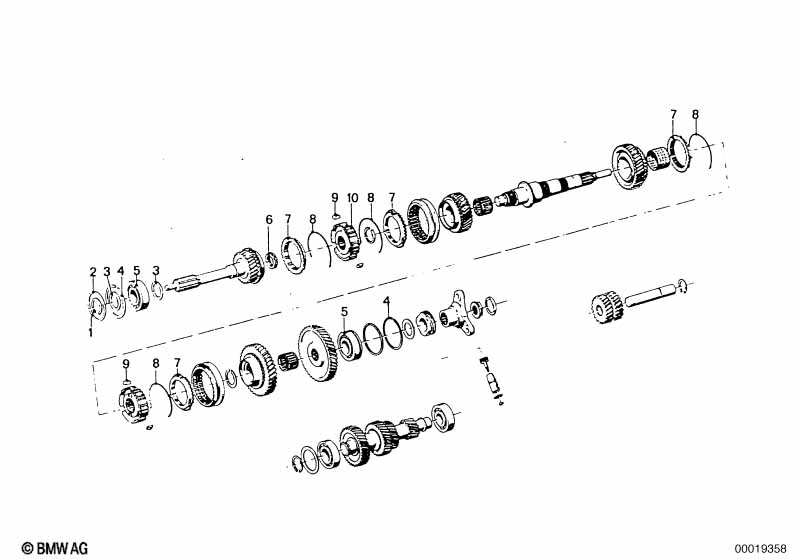

This ZF s5-16 gear wheel set,single parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware.

ZF s5-16 gear wheel set,single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lock Ring 30X2 1 07119934201 $2.18 Shop at ECS Tuning
according to choice
02 Washer 1 23121201281 ENDED Shop at ECS Tuning
02 Washer 1 23121201282 ENDED Shop at ECS Tuning
02 Washer 1 23121201283 ENDED Shop at ECS Tuning
02 Washer 1 23121201285 ENDED Shop at ECS Tuning
02 Washer 1 23121201286 ENDED Shop at ECS Tuning
02 Washer 1 23121201287 ENDED Shop at ECS Tuning
03 Washer 2 23121201265 ENDED Shop at ECS Tuning
03 Washer 2 23121201266 ENDED Shop at ECS Tuning
03 Washer 2 23121201267 ENDED Shop at ECS Tuning
03 Washer 2 23121201268 ENDED Shop at ECS Tuning
03 Washer 2 23121201269 ENDED Shop at ECS Tuning
03 Washer 2 23121201270 ENDED Shop at ECS Tuning
03 Washer 2 23121201271 ENDED Shop at ECS Tuning
03 Washer 2 23121201272 ENDED Shop at ECS Tuning
03 Washer 2 23121201273 ENDED Shop at ECS Tuning
03 Washer 2 23121201274 ENDED Shop at ECS Tuning
03 Washer 2 23121201275 ENDED Shop at ECS Tuning
04 Snap ring SP72 2 07119933305 ENDED Shop at ECS Tuning
05 Ball bearing 72X30X19 2 23121205197 Shop at ECS Tuning
06 Needle cage 35X29X15 1 23221201276 $32.85 ENDED Shop at ECS Tuning
07 Synchronizer ring 4 23231224594 $73.63 ENDED Shop at ECS Tuning
08 Synchroniser spring 4 23231202841 $5.35 ENDED Shop at ECS Tuning
09 Thrust adapter 6 23231207187 ENDED Shop at ECS Tuning
10 Guide sleeve 1 23231201302 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
