Getrag 262 gear wheel set,single parts for BMW 2.5CS-3.0CSL 3.0CS (1973)

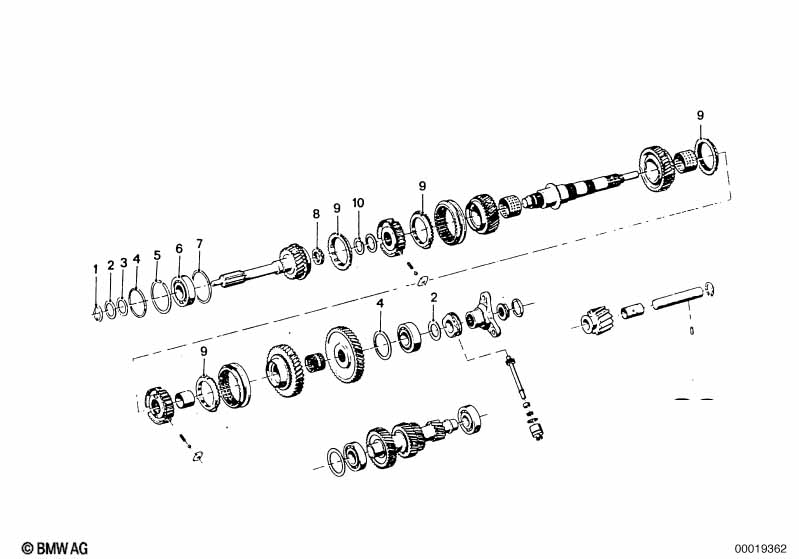

This Getrag 262 gear wheel set,single parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock Ring | A30X2,5 | 1 | 23121630170 | $3.30 | Shop at ECS Tuning | ||||
| 02 | Support | 30X42X2,5 | 2 | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | PS 30X42X0,3 | X | 23121630160 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shim | 56X72X0,3 | X | 23121200438 | $2.82 | Shop at ECS Tuning | ||||
| 05 | Snap ring | SP72 | 1 | 07119933305 | ENDED | Shop at ECS Tuning | ||||
| 06 | Ball bearing | 72X30X19 | 1 | 23121205197 | Shop at ECS Tuning | |||||
| 07 | Spacer | 1 | 23211202729 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 08 | Needle cage | 30X22X15 | 1 | 23221202730 | $43.84 | ENDED | Shop at ECS Tuning | |||
| 09 | Synchronizer ring | 4 | 23231202739 | $86.78 | Shop at ECS Tuning | |||||
| 10 | Snap ring | 1 | 23221630172 | $5.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
